Optima Birthing Bed (4 Motor)
Optima birthing bed family offers safe, comfortable and ergonomic childbirth during all stages of labour and also when special medical attention is required. The renewed Optima bed has been designed with the mother, midwife and obstetrician in mind. We have focused particularly on ergonomics, safety and mobility to help create a better environment for both the family and health care staff.
4-motors for electric height and back section adjustment, Leg section movement in/out and Trendelenburg with a manual quick release for back section.
Additional information
Optima Birthing Bed
4-motors for electric height and back section adjustment, Leg section movement in/out and Trendelenburg with a manual quick release for back section.
Optima birthing bed family offers safe, comfortable and ergonomic childbirth during all stages of labour and also when special medical attention is required. The renewed Optima bed has been designed with the mother, midwife and obstetrician in mind. We have focused particularly on ergonomics, safety and mobility to help create a better environment for both the family and health care staff.
Multiple delivery positions in a single unit affords a greater level of comfort for the mother. The midwife can easily access the mother from different positions thus improving ergonomics and safety. Furthermore, the bed features electric or manual Trendelenburg and manual back section quick release for enhanced safety. Antibacterial coating on the frame together with a clear frame construction enables easy cleaning and high level of hygiene. Optima birthing bed can also be used for transportation within the hospital.
Structure
- Painted silver frame.
- CE marked/ MDR compliant.
- Central locking system.
- Lift system provides optimum stability and supports weights of up to 230 kg across all three models.
Comfort

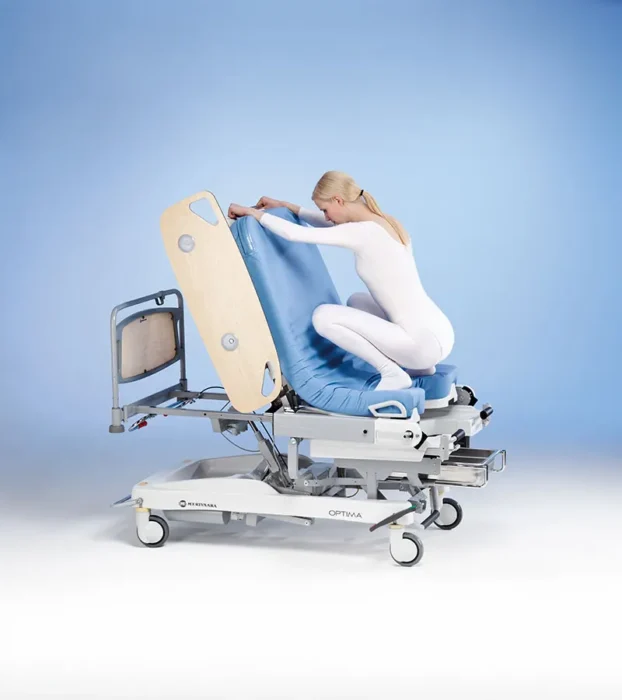

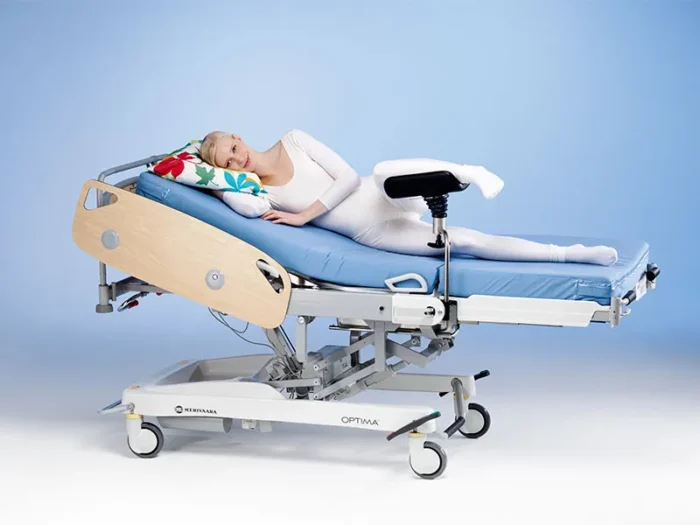

- Multiple delivery positions in a single unit offers a greater level of comfort for the mother.
- Ergonomic foot section extends bed by up to 25cm and slides under the bed when not in use.
- Low minimum height adjustment, 58.5– 95.5cm.
Ease Of Handling
- Handset designed to allow easy and quick positioning of the bed sections.
- Electric Trendelenburg / Manual Trendelenburg position to (12º).
- Ultra light yet stable, the leg section is easy to manoeuvre and slides in under the bed together with the mattress, making work flow faster and more ergonomic.
Easy Cleaning
- Manufactured from high quality materials, guaranteeing their long life and durability.
- Clear frame construction enables easy cleaning and high level of hygiene.
Safety
- 150mm diameter castors with central braking and steering facility operated from head-end for ease of use when portering.
- Emergency release of the backrest for quick lowering of the section in the event of an emergency.
- Conforms to Regulation (EU) 2017/745.
| Model | 4-motor |
| Total width | 1000 mm |
| Patient surface width | 780 mm |
| Total length min-max | 1520 – 2110 mm |
| Patient surface min-max | 1320 – 2010 mm |
| Height adjustment | 580 – 955 mm |
| Patient maximum weight | 190 kg |
| Safe Working Load (SWL) | 230 kg |
| Leg section Safe Working Load (SWL) | 80 kg |
| Trendelenburg | 12° |
| Back section adjustment | 0 – 75° |
| Leg section height adjustment | 0 – 250 mm |
| Leg section height adjustment | 0 – 16° |
| Castors | Central locking 150 mm with braking bar |
| Weight | 165 kg |
| Hand control | Yes |
