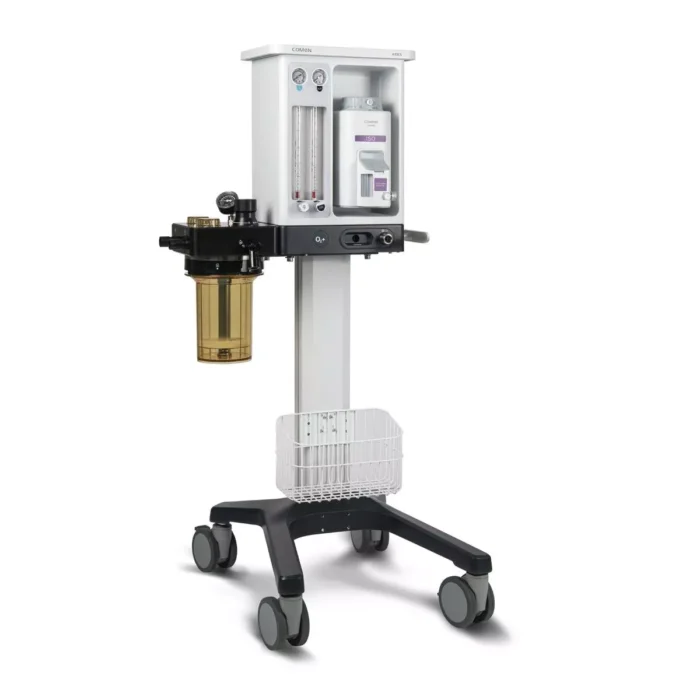

Comen ARK5 Veterinary Anesthesia Machine

Additional information

Comen ARK5 Anaesthesia Machine (Veterinary)

The ARK5 from Comen includes a High accuracy vaporiser, developed to provide accurate delivery of anesthetic gas, thus reducing complications during anaesthesia. This machine Support two types of anesthetic gas including Isoflurane & Sevoflurane. Supports various types of refilling methods including Pour Fill, Key Fill, Quick Fill, and Easy Fill.

With advanced ventilation modes and monitoring technology designed specifically for animal care to provide accuracy and safety when monitoring during surgery. Unique VS (Ventilation support) Mode features:

• Minimum tidal volume of only 5ml, which can help to provide precise ventilation.
• Tidal volume is automatically calculated by inputting animal weight.
• According to the compliance, resistance, and respiratory effort of the animal's lungs, the support pressure is adaptively adjusted to ensure the ventilation quality of the animal.
• Supports spontaneous breathing triggering, with great animal-machine synchronisation, and improves animal ventilation comfort.
• Suitable for backup ventilation support, escorting the life safety of animals.

Product Key Features:

• Manoeuvrable anaesthesia workstation: Mounted on multi-function trolly with 4-inch casters allowing for smooth swivel and quiet multi-directional movements as needed.
• Auxiliary Common G. Outlet (ACGO): decrease cross infection risk by disposing waste gas into the designated circuit, this also decreases the risk of carbon dioxide retention during surgery.
• Flush O2: Provides high flow oxygen at the rate of 10L/min–3OL/min. Oxygen can be quickly delivered in the event of a decrease in oxygen concentration.
• Two options for waste gas scavenging system: AGSS Reusable collection system for waste anaesthesia gas. In addition to AGSS system, there is also an option for Disposable gas filter canister. Customers are able to choose whichever system is best suited for their clinical needs.
• Compact, space-saving design LightweIght and compact to maximise, vital space within the operating theatre.

Further Benefits:

• Functional handle: Ergonomically designed and positioned for functionally and manoeuvrability.
• 0–4L/min Flow meter: with easy read dials, allows precise 02 and airflow control.
• Integrated storage basket: at lower of the trolley. Allows further storage for vital accessories storage.
• Monitor top storage Top can hold up to 20kg, providing further space to hold other important equipment.

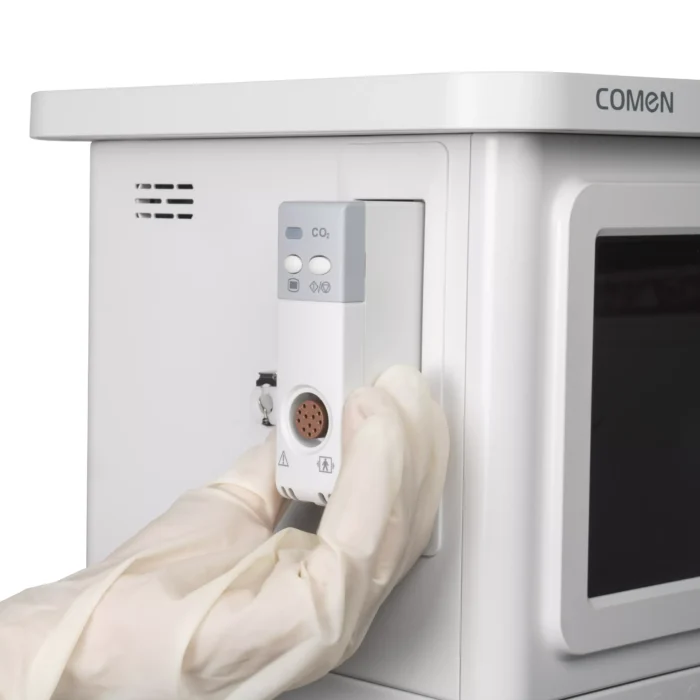

Integrated EtCO2 Module

The EtCO2 Module supports real-time vital parameters monitoring and features a modular design that is space-saving and user-friendly. The physiology of CO2 production, metabolism, and excretion is intricately linked to proper cardiopulmonary function. ETCO2 monitoring can provide information concerning the status of patient ventilation, circulation, and metabolism to clinicians.
