Nellcor PM100N Patient Monitoring System

Medtronic
Product no. AE613.10
Manufacturer code. PM100N

The Nellcor PM100N Bedside SpO2 Patient Monitoring System is fleXible, compact and intuitive. It provides at-a-glance access to real-time patient respiratory status information and trending data.

Read additional information

was £1,198.80
£1,043.63
with VAT
Or
£869.69
without VAT
Shop accessories for this product
Expected delivery:
5 Working days

30 Day Account
Pay via invoice for your order
NHS Orders
We supply to over 12,000 medical providers
Quote Request
Receive an official quote for your order
VAT Exemption
Purchase with 0% VAT for a disability or charity

Additional information

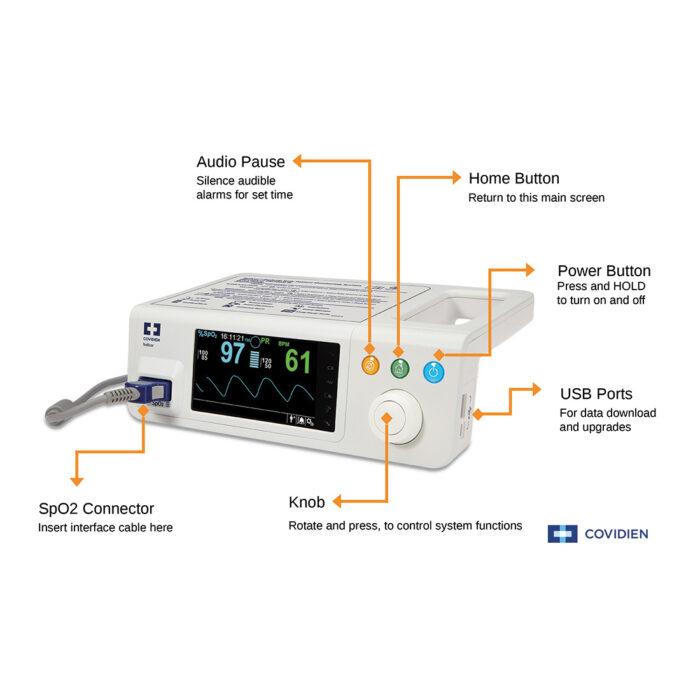

The Nellcor PM100N Bedside SpO2 Patient Monitoring System is fleXible, compact and intuitive. It provides at-a-glance access to real-time patient respiratory status information and trending data. The compact monitor can be placed at the patient’s bedside or easily transported using the convenient, built-in handle. Nellcor PM100N Patient Monitoring System incorporates the latest Nellcor digital signal processing technology for accurate, reliable readings even during low perfusion, motion, and other forms of signal interference, as well as SatSeconds alarm management to help distinguish meaningful alarms from transient events.

Key Features:

  • Monitors neonates through adults
  • Measures SpO2 from 1% to 100%
  • Measures pulse rate from 20 to 250bpm

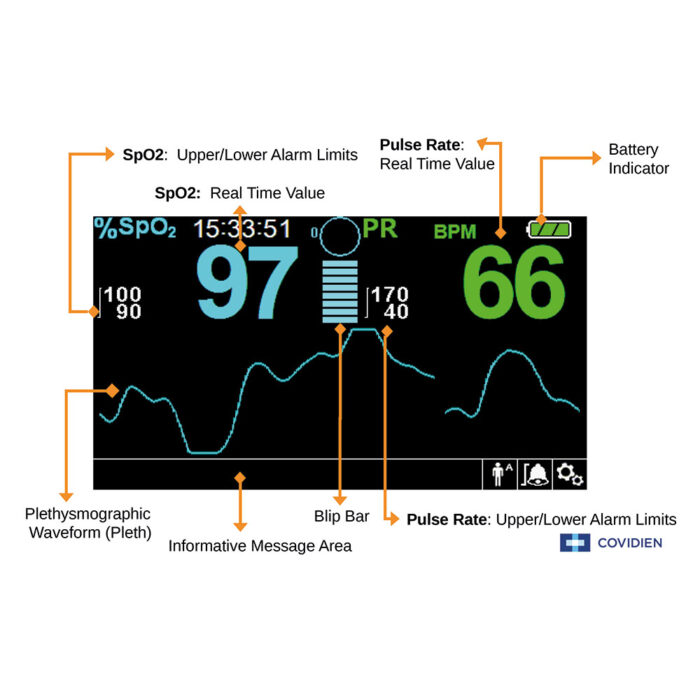

  • Displays plethysmographic waveforms, pulse amplitude and real-time SpO2 and pulse rate data
  • 96-hour trend memory with data captured every four seconds for quick review of changes in patient status
  • Includes SatSeconds™ alarm management, a clinician-controlled feature that has been proven to reduce nuisance alarms
  • Password protected homecare and sleep study modes
  • Both homecare and sleep study modes meet IEC 60601-1-11 for home health equipment to promote the safe and effective use of the monitor by lay users in the non-hospital setting.
  • Dimensions: 8.2cm H x 25.5cm W x 15.5cm D
  • Weight: 1.5 kg
  • Sensor not included please choose sensor required from Accessories listed below
Sensors not Supplied - Only includes 3x disposable Sensors.

Technical Specifications:
Battery Type Lithium ion
Battery capacity Minimum of five hours using new, fully charged battery with no alarms; optional 10-hour battery
Weight S1.5 kg (3 lbs)
Size 82 H x 255 W x 155 D (mm)
Standard Mode: Hospital, hospital‑type facilities, and intra‑hospital transport
Homecare Mode: Simplified monitoring for use in the home by caregivers
Sleep Study Mode: Muted audible and visual queues to aid sleep studies
