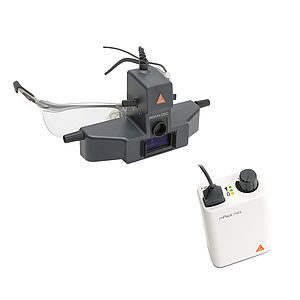

HEINE SIGMA 250 M2 Kit with S-Frame and mPack Mini (Micro Spot Aperture)

Additional information

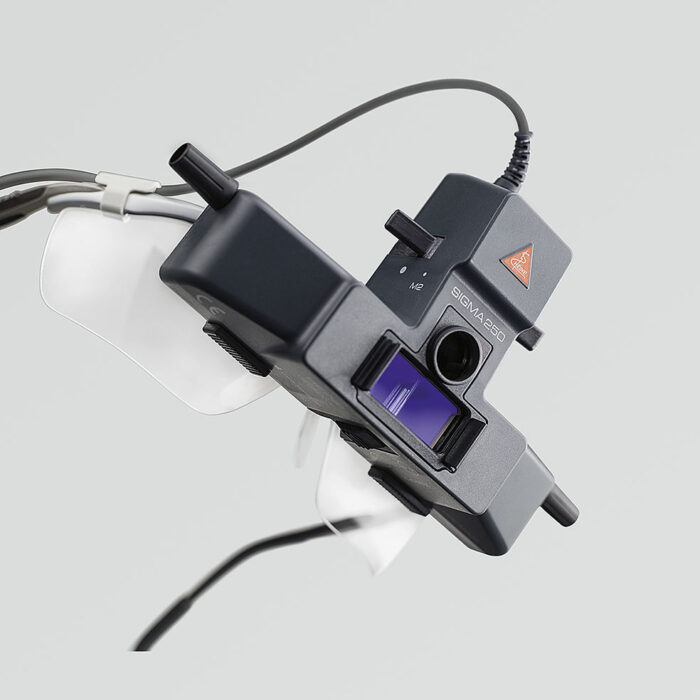

HEINE SIGMA®250 M2 BINOCULAR INDIRECT OPHTHALMOSCOPE

The SIGMA250 M2 has a Micro spot aperture instead of Small aperture
mPack MINI
Compact and lightweight Heine power source
The new, high performance power source HEINE mPack mini for LoupeLight 2, MicroLight 2 as well as the SIGMA® 250 offers freedom from cables that tie the users to desk, wall or static power sources. With a weight of only 95 g, this mobile power source is now approx. 70 % smaller and lighter than its predecessor. The pouch which is included in the delivery can be attached to the belt and the mPack mini can also be charged while clipped to the belt. The mPack mini can be charged flexibly via the USB plug, e.g. on a laptop / desktop or via USB charger.

The goal was to design an instrument that would provide the most precise examination with exceptional comfort. With a weight of 110 g and precision HEINE optics with LED HQ illumination for crisp, high resolution images, the SIGMA250 exceeds our initial goals. Endless flexibility and compact design: The new, high performance power source HEINE mPack mini offers freedom from cables that tie the users to desk, wall or static power sources. With a weight of just 95 g and dimensions of 44 x 23 x 101 mm, this mobile power source is now approximately approx. 70 % smaller and lighter than its predecessor.

SIGMA 250 Kit Comprises: SIGMA 250, S-FRAME, Retaining Cord & Cleaning Fluid

Key Features

Performance

• LED in HQ: The new standard in LED illumination defining optimal light intensity, homogeneity and colour rendering for the most accurate diagnosis. Red is red, blue is blue. Colour temperature: typ. 4 000 K, CRI typ. ≥ 90, good index for red colors.
• Precision HEINE Optics – using only optical grade glass, we manufacture all optical components of the SIGMA250, ensuring crisp, high resolution images for the most detailed diagnostic information.
• Lithium-Ion Battery Technology in mPack mini – typ. 11 hours in continuous operation at maximum power.

Function

• Exclusive Small Pupil System – the exclusive system with separate controls for optical convergence and angle of parallax guarantees fully illuminated, stereo views in pupils as small as 2 mm as well as viewing in the periphery.
• Filters and apertures – integrated red-free filter and two aperture sizes. Cobalt blue, yellow filters and diffusor attachments available for full diagnostic capability.
• Power Source mPack mini – compact and light power source with USB charging option.
• Customisable S-FRAME – lightweight spectacle frame has multiple adjustment points that can be optimised for maximum comfort and a personalised fit. Optional clip-in correction frame for prescription lenses is also available.

Durablity

• LED Thermal Management. LED illumination systems require thermal management to ensure long-term performance and product stability. Carefully selected and applied heat-diffusing materials guarantee consistent quality and performance throughout the LED’s lifetime rating of up to 50.000 hours.
• Lightweight frame. High tensile carbon fiber construction is lightweight and has excellent stability.
• Dustproof design: Protects the precision optical components.
