Huntleigh Dopplex ATP Ankle & Toe Pressure Kit – Diabetic Foot Assessment
The Huntleigh Dopplex ATP Kit is a complete vascular and diabetic foot assessment system designed to measure ankle and toe pressures for accurate diagnosis of peripheral arterial disease (PAD). Featuring a digital Doppler with waveform display and a dedicated toe pressure probe, it enables reliable Toe Brachial Index (TBI) measurement, particularly in patients with calcified arteries. The kit also includes a Neuropen for neuropathy assessment, supporting comprehensive foot evaluation. Portable and easy to use, it is ideal for hospitals, podiatry clinics and community care settings.
Original price was: £1,931.00.£1,714.97Current price is: £1,714.97.
1 in stock
Additional information
Huntleigh Dopplex ATP Ankle & Toe Pressure Kit
The Huntleigh Dopplex ATP Ankle & Toe Pressure Kit is a vascular assessment system designed for evaluating peripheral arterial disease (PAD) and diabetic foot conditions. It measures both ankle and toe systolic pressures, offering a more reliable assessment of circulation in patients where standard ABI readings may be less accurate, such as those with diabetes or calcified arteries.

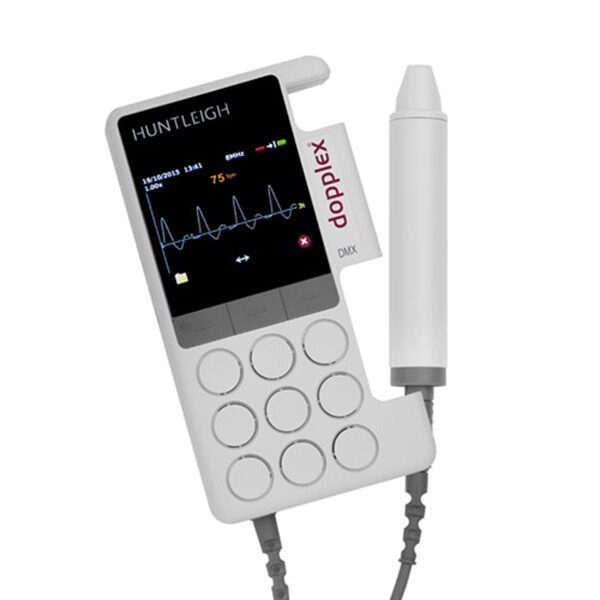

At its core is the Dopplex DMX digital Doppler, providing high-resolution waveform display and audio output. An Arterial Photoplethysmography (PPG) probe enables quick toe pressure measurements and calculation of the Toe Brachial Index (TBI), delivering more dependable results in patients with incompressible vessels.
The kit also includes a Neuropen for neuropathy screening, allowing combined vascular and neurological assessment. With internal data storage, software compatibility, and a portable carry case, it is well suited to hospitals, clinics, and community care, supporting early detection and effective management of vascular disease.
Key Features
- Complete ankle and toe pressure kit for diabetic foot assessment
- Measures ABI and Toe Brachial Index (TBI) for enhanced vascular diagnosis
- Dopplex DMX digital Doppler with waveform display and audio output
- APPG/PPG probe for accurate toe pressure measurement
- Suitable for patients with incompressible or calcified arteries
- Internal memory stores waveform and pressure data
- Compatible with vascular reporting software for analysis and documentation
- Includes Neuropen and monofilament for neuropathy assessment
- Latex-free cuffs for patient safety
- Portable system supplied with carry case
What’s Included
- Dopplex DMX digital Doppler unit
- EZ8XS 8 MHz widebeam Doppler probe
- APPG/PPG probe with adaptor
- Toe cuffs and inflator
- Latex-free arm and ankle cuffs (standard and large)
- Trigger-operated sphygmomanometer
- Neuropen with box of tips (including 10g monofilament)
- Medical-grade recharging kit
- Carry bag and educational materials
| Specification | |
|---|---|
| Product Type | Ankle & Toe Pressure (ATP) vascular assessment kit |
| Brand | Huntleigh |
| Model | Dopplex ATP Kit |
| Measurement | Ankle pressure, toe pressure, ABI, TBI |
| Technology | Digital Doppler with PPG/APPG probe |
| Probes | 8 MHz Doppler probe and toe pressure probe |
| Cuffs | Toe cuffs, arm and ankle cuffs (latex-free) |
| Data Storage | Internal waveform and pressure storage |
| Connectivity | Compatible with vascular reporting software |
| Additional Tools | Neuropen with monofilament tips |
| Application | Diabetic foot assessment, PAD diagnosis |
| Use Environment | Hospitals, podiatry clinics, vascular clinics, community care |
