Ambu aView 2 Advance Gen 2 Endoscopy Monitor
Excellent imaging and an intuitive user interface helps you perform procedures with confidence
Mount it on an IV pole, carry it, or place it at the bedside or on a table for the most comfortable position close to you and your patient
Take advantage of more than 2.5 hours battery time – it’s fully portable and easy to take with you, set-up and use right away
Additional information
Ambu aView 2 Advance Gen 2 Endoscopy Monitor
Excellent imaging and an intuitive user interface helps you perform procedures with confidence
Mount it on an IV pole, carry it, or place it at the bedside or on a table for the most comfortable position close to you and your patient
Take advantage of more than 2.5 hours battery time - it’s fully portable and easy to take with you, set-up and use right away

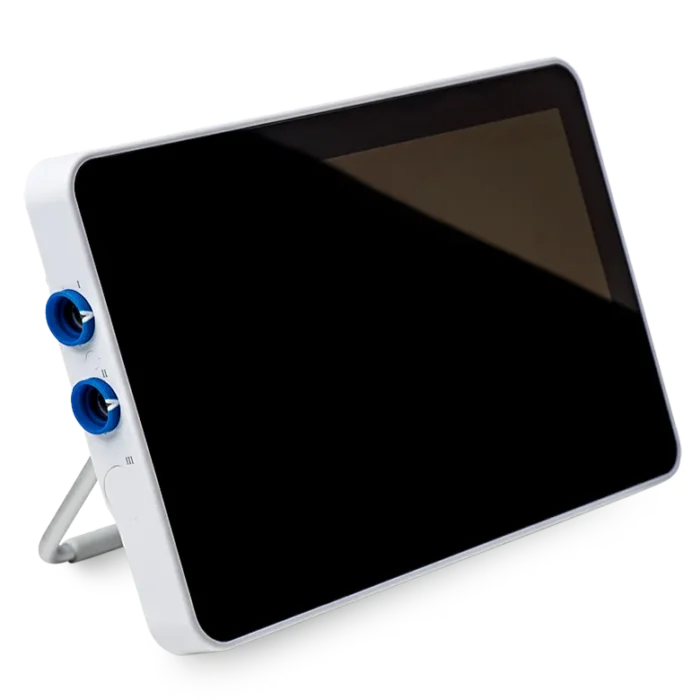

Ambu® aView™ 2 Advance is a high-quality, portable full-HD endoscopy system. It consists of a displaying and processing unit that supports a broad range of endoscopy procedures in pulmonology, ENT, anaesthesia and urology. It’s an integral part of our single-use endoscopy solutions, which provide long-term value for your hospital, and help you streamline your workflow.
Flexible and intuitive solution helps streamline workflow

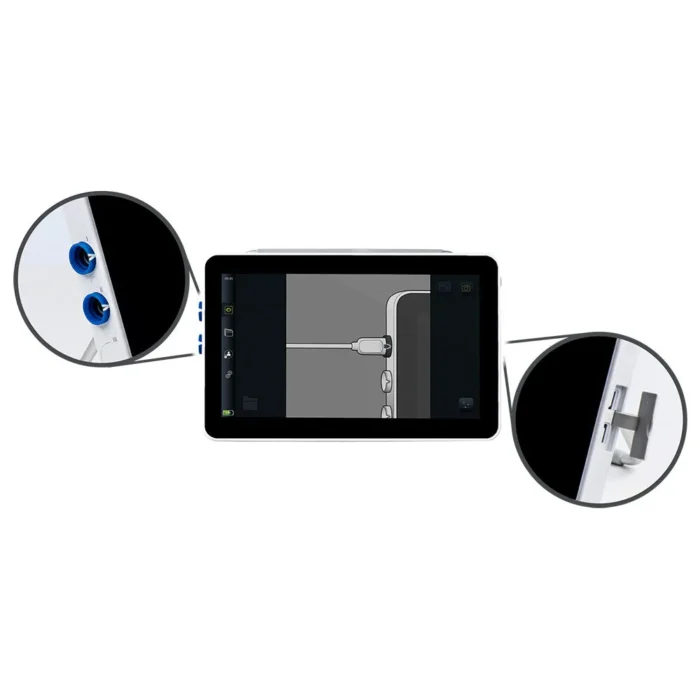

You can easily take the lightweight aView 2 Advance with you by attaching it to an IV pole (using the built-in bracket) or carrying it by the handle. It’s simple to set up the battery-driven aView 2 Advance and use it right away for different clinical situations and preferences:
- Simple to connect to external monitors
- Intuitive touchscreen controls available in 28 languages
- Easy to import your daily worklist and export imaging data
Excellent imaging helps you perform procedures confidently
The high-quality aView 2 Advance full-HD displaying and processing unit provides you with clear, sharp imaging of the patient’s anatomy:
- Continuous optimisation of the image quality
- Adjustable colour, contrast, sharpness and brightness settings
- Anti-reflective screen surface reduces ambient light disturbances
An integral part of a single-use solution with long-term value
The innovative and forward-thinking design of aView 2 Advance and the simplicity of Ambu single-use concept provide clear long-term value for you and your hospital:
- Single-use setup requires marginal initial capital investment compared to reusable
- Single-use endoscopes eliminate multiple ongoing costs and repair associated with reusable endoscope reprocessing
- You only pay for the endoscopes you need reducing financial risk in periods where procedure activity is low
- Replacement options for parts most susceptible to wear and tear
Display | |
Max. Resolution | 1920 x 1080 pixels (Full HD) |
---|---|
Orientation | Landscape |
Display Type | 12.8” Colour TFT LCD |
Image Adjustment | Adjust colour, contrast, sharpness and brightness |
Start-up Time | Live image within seconds after power ON |
Electrical Power | |
Power Requirement | 19 V, 3.43 A DC input |
Battery Type | 14.4 V 6500 mAh Lithium-ion |
Battery Operation | More than 2.5 hours (depending on visualization device being used) |
Operating Environment, Storage & Transportation | |
Storage Temperature | 0 – 40 °C (32 – 104 °F) |
Operating Temperature | 10 – 35 °C (50 – 95 °F) |
Relative Humidity | 30 – 85 % |
IP Protection Classification System | IP30 |
Atmospheric Pressure | 80 – 106 kPa |
Altitude | ≤ 2000 m |
Dimensions | |
Width | 331 mm (13.03”) |
Height | 215 mm (8.46”) |
Thickness | 52 mm (2.05”) |
Weight | 2.7 kg (6.0 lbs) |
Connectivity | |
USB Connection | 2 x USB 3.0 Type A |
Digital Video Out | HDMI and 3G-SDI (1920 x 1080 p, 60 fps) |
WiFi | Supports IEEE 802.11 ac/a/b/g/n |
LAN Ethernet | RJ45 connector, 10/100/1000 Mbps |
Memory | |
Storage Capacity | 32 GB including Operating System |
Mounting Interface | |
Mounting Interface Standard | VESA MIS-D, 75 C, VESA FDMI compliant display, Part D, with centrally located mounting interface |
