Ambu Redi-ACE Mini Extrication Collar

Additional information

The Ambu Redi-ACE is a unique adjustable collar. Combined with the Redi-ACE Mini these two collars offer 14 sizes ensuring that patients can have the most effective and accurate fit possible.

Made from radio translucent materials, the collar is packaged completely flat and has a unique automatic flip up chin. Ambu Redi-ACE is a disposable adjustable collar for immobilizing the cervical column.

The Ambu Redi-ACE incorporates latches that allow the rescuer to size the collar as accurate as possible to the victim’s neck size. Two safety lock buttons hold the collar in place when adjusted.

• Easy to use
  Ambu Redi-ACE has an automatic flip up chin and two locking buttons. It can be placed on the patient using only 3 steps; sizing – locking – placement.
• 2 collars for all patients
  With 8 sizes of Ambu Redi-ACE and 6 sizes of Ambu Redi-ACE Mini the majority of patients can be treated.
• Practical characteristics

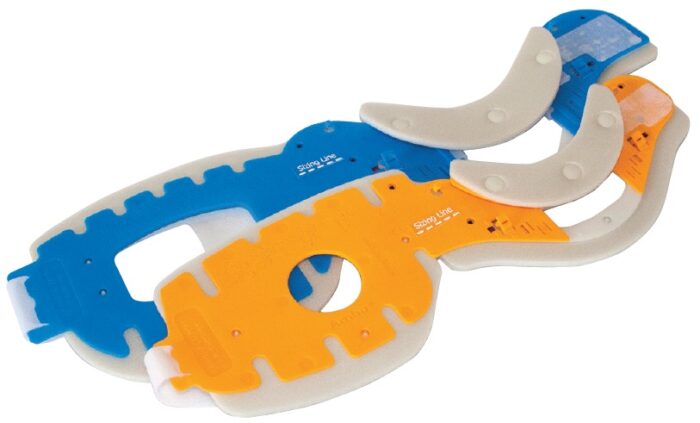

  Ambu Redi-ACE can be stored completely flat. Additionally the Ambu Redi-ACE has cannula hooks to secure the oxygen tube.

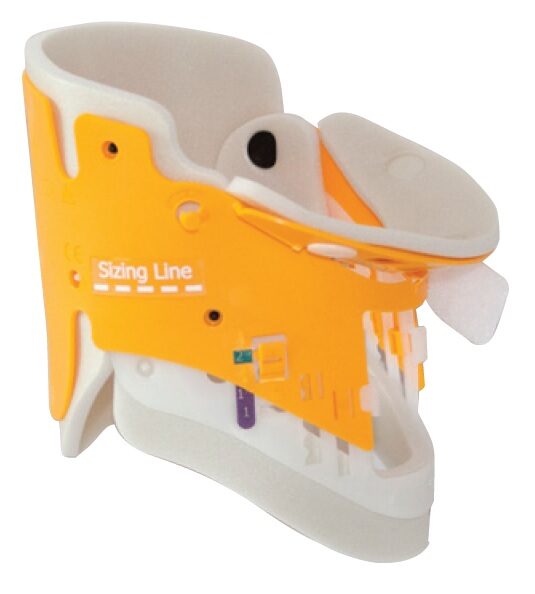

Ambu Redi-ACE Mini
Adjustable sizes Infant, Pediatric and Small Adult
Number of settings 6 adjustments
Dimensions 447 x 188 x 14 mm (17.6” x 7.4” x 0.6”)
Weight 100 g (3.5 ounces)
Color Yellow/light grey
Translucency CT and MRI compatible
Storage temperature -30˚ to +70˚ C
Operation temperature -10˚ to +40˚ C

Product Material
Ambu Redi-ACE
Blue/light grey plastic Polypropylene
Foam IXPE
Ambu Redi-ACE Mini
Yellow/light grey plastic Polypropylene
Foam IXPE
