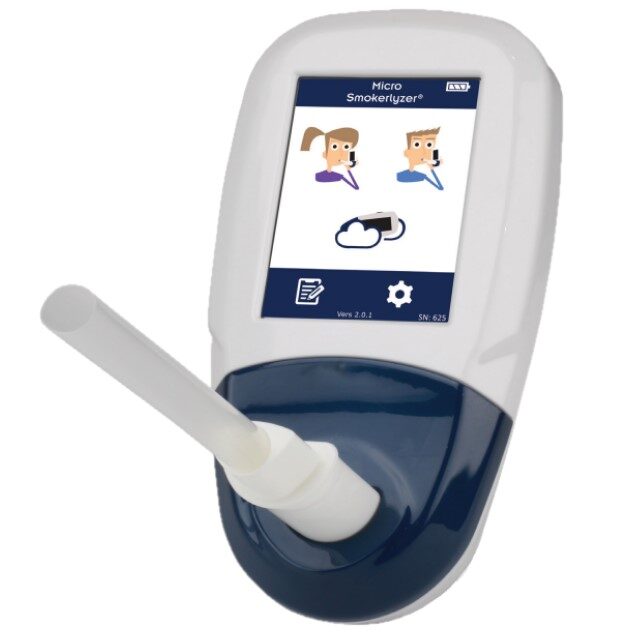

Bedfont Micro+ Smokerlyzer

Advanced breath CO monitoring for use in smoking cessation. PC connectivity. Calibration-free. 5-year warranty.

The Micro+TM Smokerlyzer® is a carbon monoxide monitor with advanced built-in functionality making it ideal for all round use in breath and ambient air CO monitoring. This monitor features three selectable modes for testing on adults, adolescents and pregnant women. Ambient air mode can also be selected for testing levels of CO in the surrounding environment.

Simple operation
Performing a test is simple with easy to follow on-screen icons prompting the user to inhale, exhale and also when to stop.

Three test modes
Testing modes for adults, adolescents and pregnant women. Depending on the test mode selected, the device measures carbon monoxide levels (ppm), carboxyhaemoglobin (%COHb) and foetal carboxyhaemoglobin (%FCOHb) in a breath sample

Traffic light interpretation
Results are displayed in seconds showing ppm, %COHb and %FCOHb values as well as the familiar green, amber and red traffic light system providing the user with a visual interpretation of results.

Touchscreen control
The Micro+TM operates using a large touchscreen colour display with an easy to use interface. User data can be entered and stored directly onto the device.

Made with SteriTouch®
Designed with infection control in mind, the plastic casing of the device is made using SteriTouch® technology, a material that eradicates 99.9% of harmful bacteria on contact.

Use with SteriBreath Eco
The entire range of Bedfont’s smokerlyzer range use individually wrapped single-patient use steribreath eco mouthpieces.

5-year warranty. Calibration-free operation.

Technical Information

• Device category CO Breath Monitor
• Concentration range 0-500ppm
• Display Full colour touchscreen
• Detection principle Electrochemical Sensor
• Accuracy (Repeatability of reading) < 3%
• H2 cross-sensitivity <5%
• T90 Response time ≤17 seconds
• Batteries 3 x AA (LR6 or equivalent) alkaline batteries
• Operating temperature range 10-40°C (storage 0-50°C)
• Operating humidity 10-90% (storage 0-95%) non-condensing
• Sensor operating life 5 years
• Sensor sensitivity 1ppm
• Dimensions Approx. 34 × 75 × 140mm
• Weight Approx. 250g including batteries
• Warranty 5 years
• Construction: Body Polycarbonate/ABS blend, SteriTouch anti-Microbial additive
• Construction: D-piece Polypropylene
