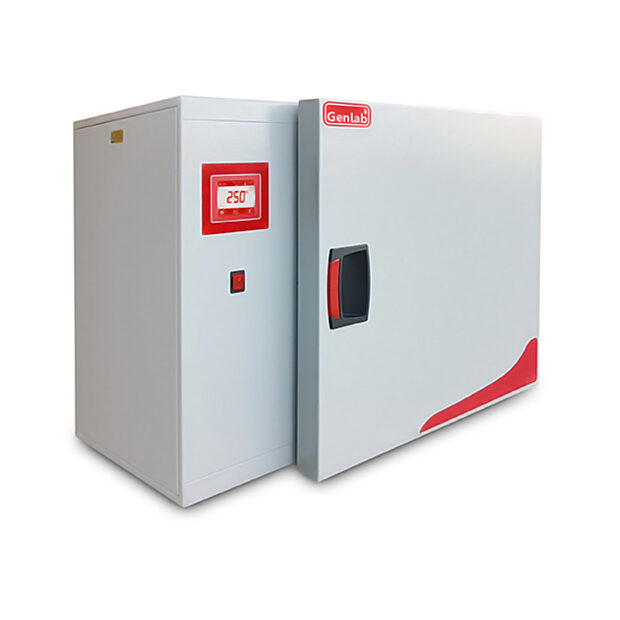

Genlab Benchtop Oven – Side Mount

Additional information

Genlab Multi Purpose Benchtop Ovens
The Genlab range of Benchtop Ovens offers a range of highly efficient, reliable and cost effective ovens to suit most warming, drying and heat treatment processes. Available in a variety of sizes and designed with both side or base mounted displays to suit your exact needs. Featuring our latest touch screen control system which offers intuitive control and excellent accuracies designed for industrial and laboratory ovens.

Specifications

• 10 sizes 6 to 200 litres (base mount controller design)
• 6 sizes 50 to 200 litres (side mount controller design)
• Temp range 40ºC to 250ºC
• On screen historical trending (48 hours)
• Manual or automatic overheat reset
• High accuracy Pt100B duplex sensors<0.8ºC
• Excellent stability <+/-0.6ºC (fan assisted)
• Low chamber uniformity
• Energy efficient with integral energy meter
• New - Set point lock feature

Options

• Fan assisted circulation (not available <30L)
• Stainless steel chamber
• 8 Stage profile control
• Count down timer
• 24/7 real time clock operation
• 10 Menux 8 Stage Profile Controller with Cyclic feature
• Access ports (25, 50, 75 or 100mm)
• Audible warnings
• Traceable calibration certificate to National Standards
• Bespoke stands and stacking kits
• Extractor unit
• Extended warranty
• Explosion relief panels (OV style only)
• Bespoke solutions available upon request

Benchtop Oven Design
The exterior is constructed from sheet steel and finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD), with a stainless steel (SS) chamber available as an option.

They are fitted with fixed shelf runners and removable chrome plated wire grid shelves.

Benchtop Oven Heating
Heated by Incoloy sheathed elements; positioned in the base of the oven on all natural convection ranges. Fan assisted ranges have elements in the rear on base mount designs and in the side on side mount designs.
The 200 litre units have fan circulation as standard.

Benchtop Oven Controls
The control system comprises of a bespoke touch screen interface that offers both accurate temperature control and an integral overheat system using 2 individual Pt100 sensors. Advanced features can be turned on and off to suit bespoke heating applications and tailored to customer preference. Oven trending is displayed for up to 48 hours and optional upgrades are available for alarm outputs
