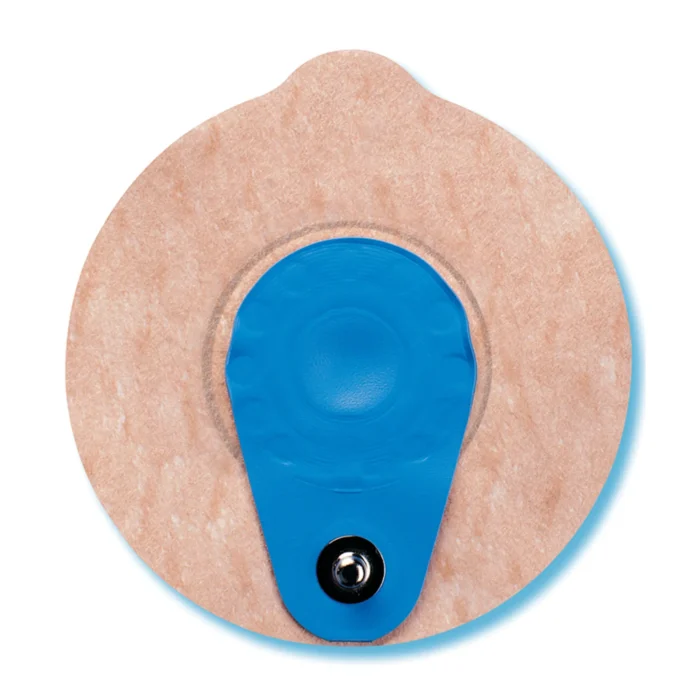

BlueSensor VLC ECG Electrodes – pack of 25
The very large Ambu BlueSensor VLC features highly conductive wet gel and a combination of instant and long-term adhesives for excellent contact and stable signals throughout the monitoring period.
To avoid reactions on sensitive skin, a special soft sponge is used in the gel area.
Thanks to the low-profile microporous material, skin is able to breathe so the electrode remains comfortable to wear over long periods.
£14.10
6 in stock
Additional information
BlueSensor VLC ECG Electrodes - pack of 25
The very large Ambu BlueSensor VLC features highly conductive wet gel and a combination of instant and long-term adhesives for excellent contact and stable signals throughout the monitoring period.
To avoid reactions on sensitive skin, a special soft sponge is used in the gel area.
Thanks to the low-profile microporous material, skin is able to breathe so the electrode remains comfortable to wear over long periods.
- Highly conductive wet gel
- Combination of instant and long-term adhesives
- Breathable microporous material
- Special soft sponge
- Unique offset connector
- High-quality Ag/AgCl sensor
| Electrode Size (max. L x W or diameter in mm) | 72 x 68 |
| Skin Contact Size (max. L x W or diameter in mm) | 68 |
| Adhesive Area (in mm²) | 3377 |
| Height Excluding Connector/Wire (in mm) | 1 |
| Sensor Material | Silver/silver chloride (Ag/AgCl) |
| Gel System | Wet gel |
| Sensor Area (in mm²) | 20.8/22.4 |
| Gel Area/Measuring Area (in mm²) | 254 |
| AC Impedance - Typical | 500 Ω |
| DC Offset Voltage - Typical | 0.2 mV |
| Defibrillation Overload Recovery - Typical | 7.4 mV |
| Rate of Change of Polarization Potential - Typical | 0.2 mV/s |
| Combined Offset Instability and Internal Noise | |
| Bias Current Tolerance (over 8 hours) | |
| PVC-Free Electrode | No |
| Electrode Not Made with Natural Rubber Latex | Yes |
| PVC-Free Lead Wire | No |
| Wire Not Made with Natural Rubber Latex | Yes |
| PVC-Free Packaging | Yes |
| Radiolucent | No |
| MR Conditional | No |
| Shelf Life (Opened Pouches) | 1 month |
| Shelf Life (Unopened Pouches) | 12 months |
| Bio-Compatible | Yes |
| Sensor | Silver/silver chloride (Ag/AgCl) |
| Sponge | Polyurethane foam/microporous (non-woven rayon) |
| Outer Carrier | Microporous tape (non-woven rayon) |
| Outer Adhesive | Acrylate |
| Inner Carrier (if any) | Polyvinyl chloride film (PVC) |
| Inner Adhesive (if any) | Acrylate |
| Upper Part | Polyvinyl chloride film (PVC) |
| Fitting | Polypropylene |
| Connector (Stud) | Nickel-plated brass |
| Liner | Polyester/polyethylene film (PET/PE) |
