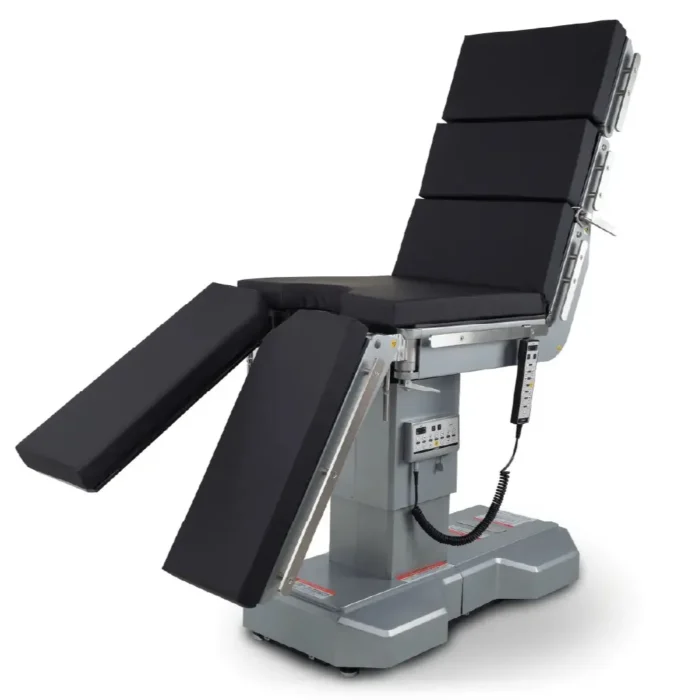

Comen W5 Electro-hydraulic Operating Table

Comen
Product no. HCE1205
Manufacturer code. W5

The modular design of the W5 is a major feature, with an emphasis on the expandability of the operating table in order to meet a variety of clinical needs and solve the problem of special posture requirements under different surgical settings.

The plates made of hexakis (methoxymethyl) melamine are able to meet the needs for most orthopedic surgeries, while also achieving an X-ray filtration of < 1mmAL.

When it comes to quality, we do not compromise. The W5 uses high-quality Grade 304 Stainless Steel that is further treated to provide the entire frame with greater strength and resistance to corrosion.

Understanding that the weight limitations of leg plates are a drawback in most operating tables, our R&D team brings to you upgraded leg plates that are able to withstand up to 60kg. An alarm is automatically activated if this weight threshold is exceeded.

Read additional information

This product is available on a price on application basis.

Request a price

30 Day Account
Pay via invoice for your order
Accepting NHS POs
Send your purchase order direct
Free Quotes
Receive an official quote for your order
VAT Exemption
Purchase with 0% VAT for a disability or charity

Additional information

Designed for Exceptional Adaptability

The modular design of the W5 is a major feature, with an emphasis on the expandability of the operating table in order to meet a variety of clinical needs and solve the problem of special posture requirements under different surgical settings.

Operational Stability Through Assured Hardware Quality

The plates made of hexakis (methoxymethyl) melamine are able to meet the needs for most orthopedic surgeries, while also achieving an X-ray filtration of < 1mmAL.

When it comes to quality, we do not compromise. The W5 uses high-quality Grade 304 Stainless Steel that is further treated to provide the entire frame with greater strength and resistance to corrosion.

Understanding that the weight limitations of leg plates are a drawback in most operating tables, our R&D team brings to you upgraded leg plates that are able to withstand up to 60kg. An alarm is automatically activated if this weight threshold is exceeded.

Things can get messy and hectic in the operating room, so in order to avoid any accidents, the W5 is equipped with a safety feature that ensures that the system automatically locks itself after 60 seconds of idle time.

We Believe in Safety and Stability

The W5 utilizes Electro-hydraulic technology to provide high weight-bearing capacity to the operating table without compromising on ergonomics. It moves fluidly and quietly, while retaining flexibility and durability.

  • 1,250 kg static load test
  • 550 kg dynamic load test
  • 18,000 times load motion test
  • 10-year life span test
  • Manual upper backboard 10,000 times exercise test
  • Head board 10,000 times movement test
  • Leg board 5,000 times exercise test
  • Circuit board stress test
Operate with Our User-Friendly Design, Because We Care

Maintaining an orderly and mess-free operating environment is crucial to work efficiency in ORs. To relieve medical staff of this unnecessary workload, our unique pipeline manager serves as an effective way to organize and store wires or tubing connected to monitors or anesthesia machines.

In order to avoid pressure sores, the W5 is equipped with a 60mm antistatic memory mattress. The mattress is composed of waterproof and antistatic stretch cloth, low-density memory foam, high-density memory foam, and waterproof and antistatic synthetic fiber cloth.

Care, Comfort, Convenience

Both the wired controller and the control panel on the table are always on standby. In the event where either one of these controllers malfunctions, our failsafe allows the other to continue functioning normally. The W5 also supports the integration of auxiliary control through the OR central control panel.

Length 2155mm+50mm
Upper back plate up max75°+5°
Weight 280kg±10kg
Upper back plate down max45°+5°
Battery 24V, 15Ah, Rechargeable
Back plate up max80°+5°
Back plate down max45°+5°
Width (excluding rails) 680mm-980mm±50mm
Height (excluding mattresses) Maximum height: 980mm ±50mm
Minimum height: 680mm ±50mm
Leg plate up max35°+5°
Leg plate down max90°+5°
Leg plate outward angle 0°~90°+5°
Lateral translation Maximum 320mm±10mm
Lifting height 0-300mm±10mm
Trendelenburg max30°+5°
Bearing load 250kg
Leg up/down max30°+5°
Control function Handheld tool, Side panel
Tilt left/right max20°+5°
Forward buckling 220°+5°
Head plate up max60°+5°
Reverse buckling 110°+5°
Head plate down max90°+5°
Brake resistance 200N
