DARAY S780 Operating Theatre Light – 160,000 Lux

Product no. HCL655
Manufacturer code. S780LC

DARAY S780 Operating Theatre Lights the most powerful and feature-packed S7 light. Designed for use in all types of surgical procedure, delivering up to 180,000 Lux of colour adjustable light to provide the ultimate surgical experience.

Read additional information

with VAT
without VAT
Expected delivery:
8 Working days

30 Day Account
Pay via invoice for your order
NHS Orders
We supply to over 12,000 medical providers
Quote Request
Receive an official quote for your order
VAT Exemption
Purchase with 0% VAT for a disability or charity

Additional information

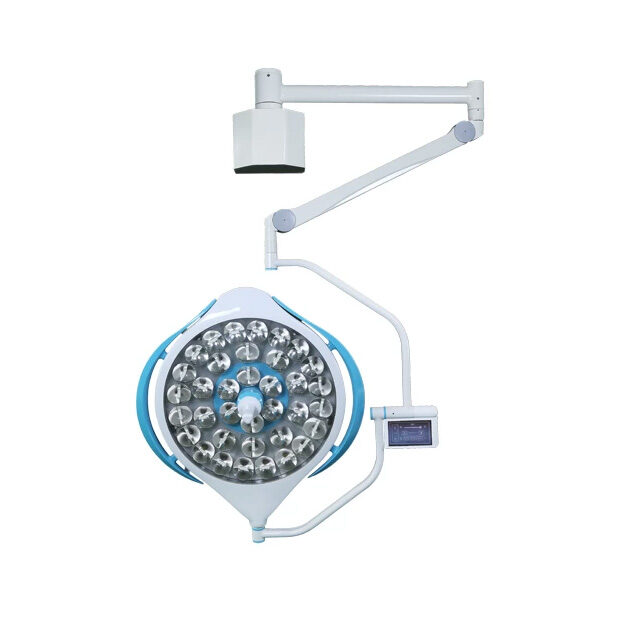

DARAY S7 Ceiling Mounted Operating Theatre Lights

The latest addition to Daray S7 Series, the S780 is our most powerful and feature-packed light yet. Designed for use in all types of surgical procedure, delivering up to 180,000 Lux of colouradjustable light to provide the ultimate surgical experience.

With adjustable light intensity and colour temperature, and an impressive field of light, all controlled with an intuitive and user-friendly interface, our S780 is setting a new standard for Operating Room lights.

Our S780 model is available with a wide array of mounting options to suit the design of your OR facilities. Available in both single and dual-head options, you can mount our light to the ceiling, to the wall, or even have it freestanding on a mobile base - especially useful when the light is a shared resource across departments.

  • World-renowned LED technology
  • Variable intensity up to 180,000 Lux
  • Variable colour temperature
  • Spring balanced arm system for versatile movement and solid positioning
  • Excellent colour rendering - for totally natural skin tones
  • A strong beam of light with an even intensity across the entire area for clearer viewing and reduced eye strain
  • Fully positionable light head, featuring a digital control panel
  • Energy-efficient, environmentally friendly, and a fully recyclable product

Light Source LED
Light Intensity (Lux) @ 1.0m 180,000 Lux ±5%
Light Intensity Adjustment Range 1% - 100%
Colour Temperature (Kelvin) 3,800K - 5,000K (±500K) - 3 stages
Colour Rendering Index (CRI) ≥97
Colour Rendering (R9) ≥95
Light Field Diameter (D50) @ 0.75m: 310mm / @ 1.0m: 290mm
Light Field Diameter (D10) @ 0.75m: 380mm / @ 1.0m: 410mm
Number of LED’s 108
Depth of Illumination (L1+L2M,   Ec60%) 840mm
Power Consumption 72W 0.34A
Average Working Life >40,000 Hours
Input Supply Rating 100 - 240V AC 50/60 Hz
Output Supply Rating 24V DC
Inrush Current 20A
Diameter of Light Head 730mm
Recommended Mounting Height Wall: 2m - 2.3m / Ceiling: 2.7m - 3m
Warranty Period 3 Years
NHS E-Class Code FBU, FKR
Commodity Code 9018 908400
GMDN Code 12276
