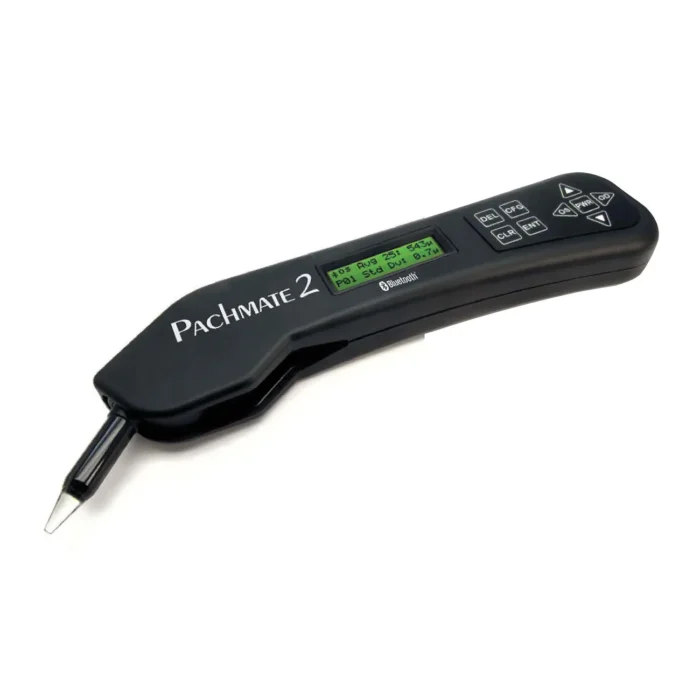

DGH Pachmate 2 – Pachymeter DGH55B
DGH Patchmate DSDGH55B – The Pachmate is a handheld pachymeter that gives accurate reliable corneal thickness measurements, Easily fits in a lab coat or shirt pocket.
Additional information
DSDGH55B Pachmate 2 Pachymeter
GLOBALLY RECOGNISED AS THE LEADING HANDHELD PACHYMETER
The DGH Pachmate revolutionised the measurement of corneal thickness with a handheld pachymeter that produces accurate, reliable and easy to obtain results.
The new Pachmate 2 also features an exclusive memory system that stores multiple patient records for automatic report generation
EASE OF USE - NO SET UP REQUIRED
Turn on power and the Pachmate 2 is ready to take pachymetry measurements. Contact the probe tip to any location on the cornea, and the Pachmate 2 will obtain and store up to 25 pachymetry measurements in less than 2 seconds. After bilateral measurements have been completed, the measurements can be reviewed on the LCD screen which provides easy visibility of the current measurement, the average, and the standard deviation of all measurements taken.
DURABLE PORTABILITY

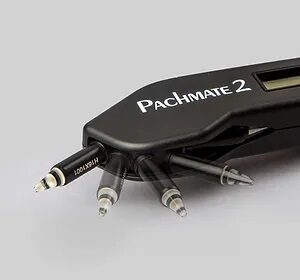

Handheld, battery operated, and lightweight, the Pachmate 2 pachymeter will fit easily into any lab coat or pocket. The Pachmate 2 probe rotates to allow the user to customize measurement position. When not in use, the probe can be rotated into the hand piece for protection while being transported or stored. The probe is also detachable and can easily be removed by the operator for cleaning or, if necessary, for replacement.
The Pachmate 2 has a minimum lifetime of 10 years and an industry leading 3-year warranty.
ADDITIONAL FEATURES
Each Pachmate 2 pachymeter includes an electronic calibration standard, a 20 MHz detachable probe, DGH Connect software installation media, installation and quick start guide, rechargeable AAA batteries, and custom carrying case.
Bluetooth option available upon request.
Measurement range: 200 to 1100 microns
Accuracy: ±5µm
Internal clock accuracy: ±0.002%
Resolution: 1µm
Power management: 2 AAA batteries
Dimensions: 7.1” (181 mm) L x 1.6” (41 mm) W x 0.9” (23 mm) D
Weight: 3.6 Ounces (112 Grams)
Probe dimensions: 1.72” (42.68 mm) L x 0.35” (8.89 mm)
Connection type: Bluetooth v2.0 (optional)
