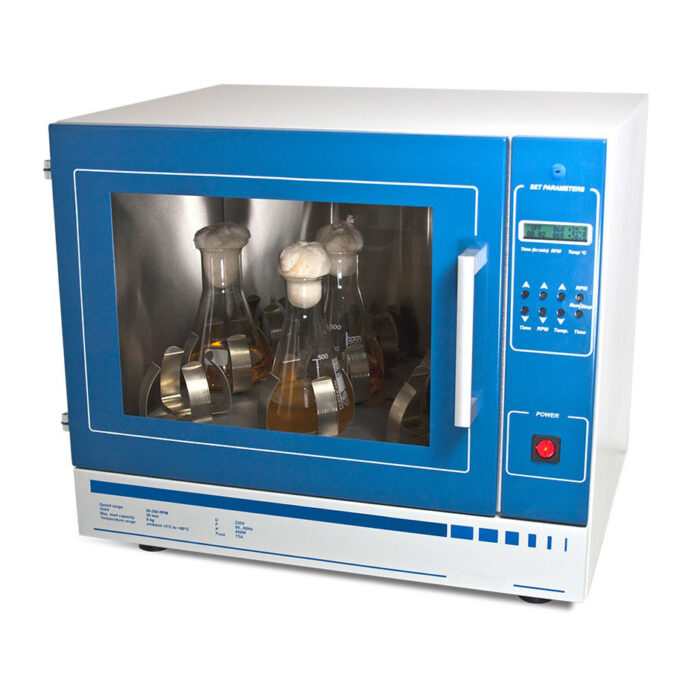

ES-80 Shaker-Incubator Stable and reliable orbital shaker-incubator for vigorous or even mixing and incubation of samples in a variety of flasks and vessels.
ES-80 Shaker-Incubator Stable and reliable orbital shaker-incubator for vigorous or even mixing and incubation of samples in a variety of flasks and vessels.
Digital control of time, temperature and shaking speed for accuracy and repeatability
Variable speed: 50 to 250 rpm
Temperature range: 25 to 80°C
Load up to 8 kg
Interchangeable platforms for shaking/incubating different vessels
Temperature control by microprocessor plus forced heated air circulation ensure a constant and even temperature within the chamber
Robust, compact construction with stainless steel inside chamber
Equipped with direct drive shaking system for reliable, long-term operation
Simple to programme time, – 1 minute to 96 hours or non-stop
State-of the art motor, thermal insulation materials and temperature PID-control decreses the energy consumption
Applications:
Life sciences — suitable for growing cell cultures in flasks, extracting tissue samples at physiological, temperatures, and sample preparation processes, mixing of biological liquids as well as the incubation and cultivation of biological liquids, growing e-coli, bioluminescence preparation.
Specification:
Dimensions (h x d x w)
510 x 525 x 590mm
Temperature range
+25 to 80°C
Temperature control range
0.1°C
Stability
0.5°C
Temperature accuracy
—
Mixing speed control range
—
Load capacity
8kg
Display
2 line, 16 character LCD
Orbit diameter
20mm
Internal working dimensions (with installed platform) (d x w x h)
450 x 390 x 300mm
Timer
1 minute to 96 hours
Power consumption – 230V
450W (2A)
Power consumption – 120V
—
Nominal operating voltage
230 (50-60Hz)
Accessories for use with ES-80 Shaker-Incubator (50–250 rpm, 25–80°C)
