Heine DELTA 30 with Contact Plate & Accessories

HEINE
Product no. HCD328
Manufacturer code. K-230.28.305

Heine DELTA 30 LED dermatoscope with Contact Plate & Accessories. Five year guarantee. The best imaging we’ve ever developed. Combined with a field of view measuring a veritable 30mm and unprecedented colour rendering, in LED HQ of course

Read additional information

2 in stock

£1,247.78
with VAT
Or
£1,039.82
without VAT
Shop accessories for this product
1-2 Working days
with tracked delivery

30 Day Account
Pay via invoice for your order
NHS Orders
We supply to over 12,000 medical providers
Quote Request
Receive an official quote for your order
VAT Exemption
Purchase with 0% VAT for a disability or charity

Additional information

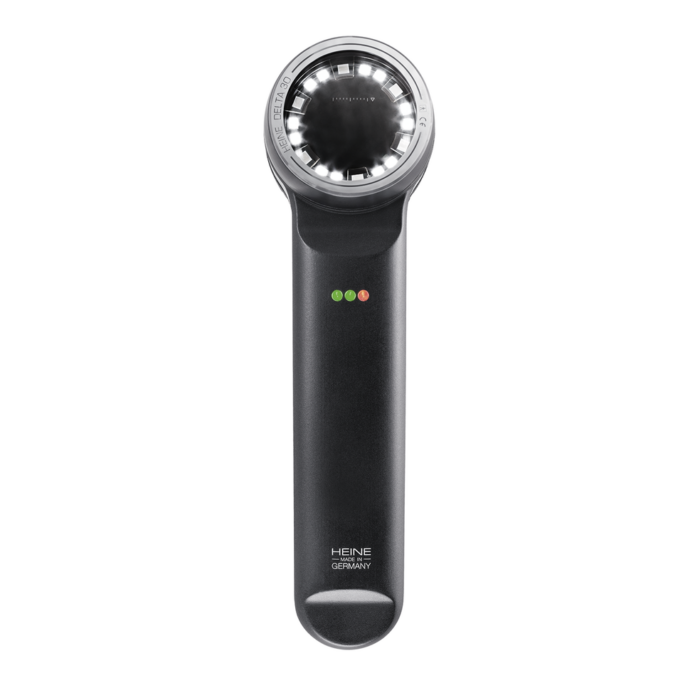

Heine DELTA 30 Dermatoscope (Contact plate & accessories)

Heine's high-end dermatoscope is well designed and stands out due to the best imaging we’ve ever developed. Combined with a field of view measuring a veritable 30 millimetres and unprecedented colour rendering, in LEDHQ of course. Polarisation provides glare-free and non-reflective working conditions. Above all else, it is comfortable to operate with its angled, ergonomic design and intuitive control. Feel free to take a look – you’re in for a real discovery.

Dermatoscope Features:

  • 5 year guarantee, including the LED illumination
  • Largest true field of view of 30mm (lens 32mm) Ø
  • Extremely sharp image with the new achromatic HEINE optical system
  • Ergonomic handling due to angled product design
  • Excellent colour rendering due to LED HQ
  • Digital documentation with the exclusive HEINE DERM app or the HEINE Cube System
  • Fast change from contact to non-contact examination
  • Crystal clear image, no matter if you prefer a closer or greater working distance
  • Polarisation eliminates reflections and glare
  • Brightness control: 3 levels of light intensity
  • Easily cleaned with spray disinfectant
  • 10x magnification
  • No cross-contamination: autoclavable contact plate with scale
  • Dioptre compensation
  • Switch between polarised and non-polarised illumination made at the touch of a button = toggle function. For more information, please visit heine.com/en/Toggle
  • Rechargeable battery with Li-ion technology: no memory effect; safely recharge the battery regardless of its state of charge
  • Small contact plate for difficult-to-access pigmented lesions
  • Charger 30 table charging station (Sold separately)

Kit Contains: DELTA 30 with contact plate with scale, USB cord with medical approved plug-in power supply, case and 5 year warranty.

Phone shown is not included.

ConnectionsMicro USB, smartphone case option, 30 table charger
Type HEINE LED illumination (HQ)
Magnification 10-fold
Diopter -4to +4dpt
Optical system Achromatic System ,3Elements
Illuminance Typ. >25,000lx in 15mm distance without contact plate
Colour temperature Typ. 5,700K
Color rendering index (CRI )Typ. ≥90
Medium life expectancy (LED )Typ. >50,000h
Lense diameter 32mm
Working distance 15mm distance (non-contact mode), contact to skin in contact mode
Contact /non -contact mode Can be used in contact and non -contact mode
Resolution 40LP /mm in image center with 80% contrast at 50mm
Power supply Li-ion Cell (internal battery)
Input USB 2.0 Micro B and Charger 30 table charging station
Power consumption Max 6W
Operating time Typ. 160 / 640 mins (min / max power)
Avg .working time6 days
Charging time USB/Table charger typ. 120min
