Heine iC1 Dermatoscope iC1/5 for iPhone 5s & SE

Additional information

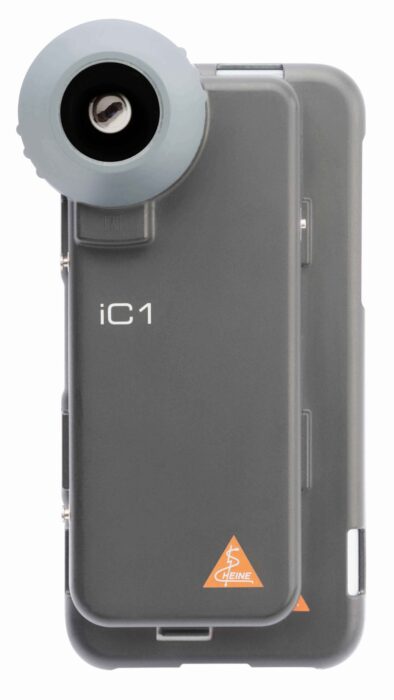

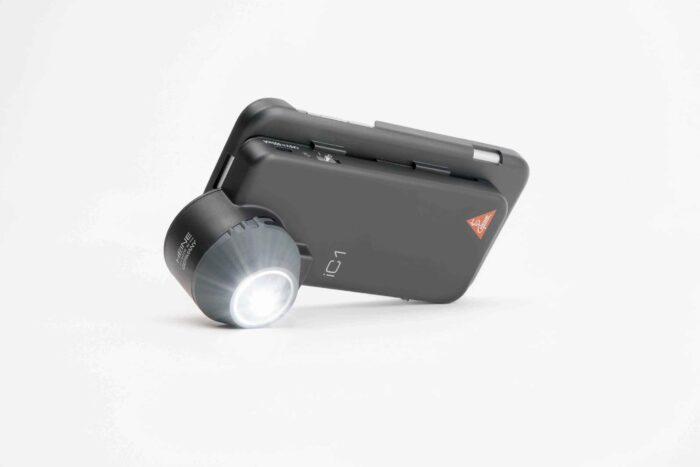

The HEINE iC 1 is a new image capturing device to record clinical and dermatoscopic images for documenting, monitoring and supporting differential diagnosis of melanoma and other skin lesions.

Innovative HEINE LEDHQ illumination combined with precision optics provide high resolution and reflex-free images with an Apple® iPhone® from version 5 upwards or iPod touch 6th generation*. The integrated Toggle Function allows you to easily alternate between polarised and non-polarised views.

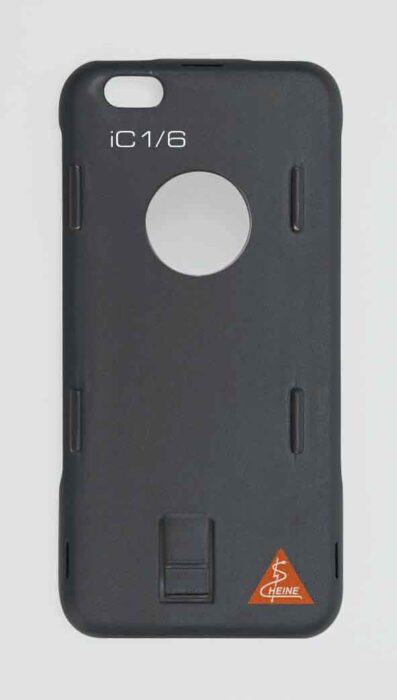

• Future compatibility – with exchangeable mobile phone cases
• See, or show your patients examination results directly on the screen
  Onboard iC 1 App free of charge
• Latest Li-Polymer battery technology with USB charging function and charge status indicator
• Changeable and cleanable contact plate made of high quality glass, with a scale for exact image comparison
• Up to 40 x true magnification with HEINE precision optics and up to 12 Megapixel** image quality
• Homogeneous LEDHQ illumination
• Toggle Function to conveniently alternate between polarised images and immersion images

Technical Data

• Available versions - iC 1/7 for iPhone 7; iC 1/6 for iPhone 6/6s; iC 1/5 for iPhone 5/5s and iPhone SE;
  iC 1/T6 for iPod touch 6th generation
• Weight - 140 g
• Dimensions - 140 x 65 x 42 mm up to 155 x 75 x 50 mm
• Users manual - DE, GB, FR, ES, IT, SE, NL, DK, FI, PT
• Operating conditions - +10 °C to +35 °C, 30 % to 75 % RH, 700 hPa to 1,060 hPa
• Terms of transport - -20 °C to +50 °C, 45 % to 85 % RH, 500 hPa to 1,060 hPa
• Electrical data - micro USB (5 V) < 500 mA, charging time typ. 2.5 h, operating time typ. 3.5 h, Li-Polymer rechargeable battery
• Optical data - Optical magnification = 15 x, digital magnification = 40 x
  (with iPhone 6 and 24" display), 21 mm field of view
• LED - 4 x high power LEDs, colour temp. typ. 5,000 K, working life typ. 100,000 h, typ. CRI >– 80

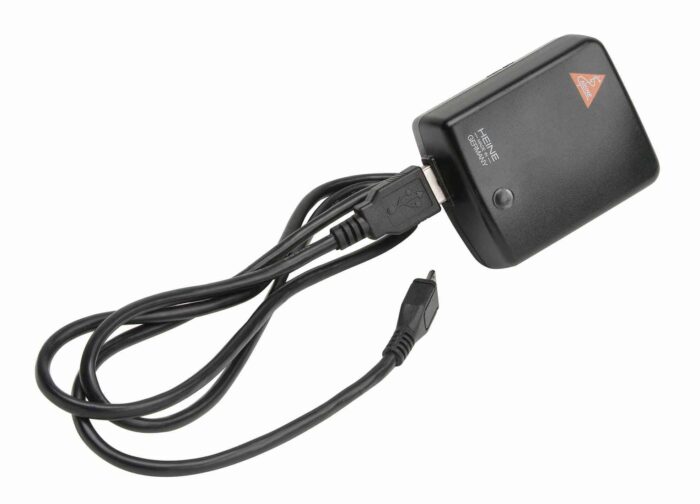

Set Includes: Contact plate with scale, mobile phone case and plug-in power supply approved for medical use.
