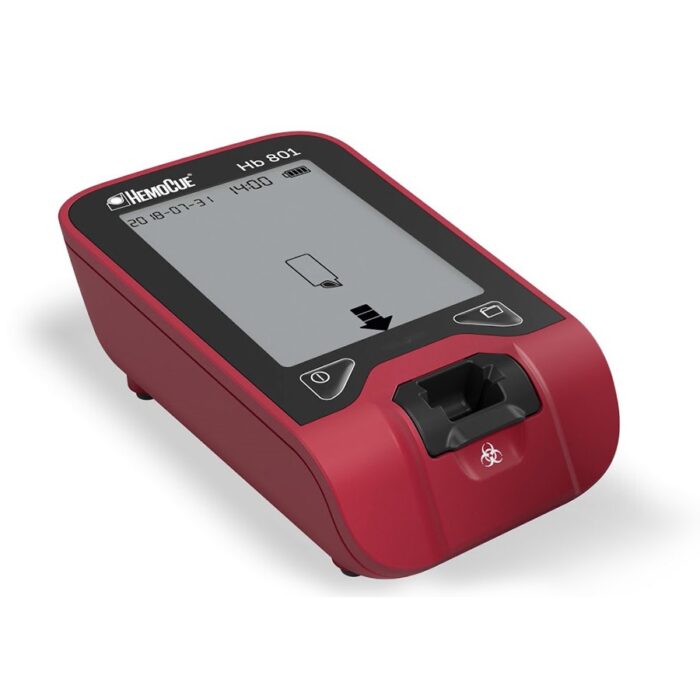

HemoCue Haemoglobin 801 Analyser g/L – 121905

Additional information

For Professional use with UK end users only

Innovation at its best from the pioneers in Hb testing

With the introduction of HemoCue® Hb 801 System we are taking the Hb point-of-care testing to a new level. The system is designed with your needs in mind, maintaining the robustness and quality you expect from HemoCue products. It provides ease of use and enables work flow efficiency with connectivity options delivering fast result at the time of car.

HemoCue® Hb 801 System is optimized for hemoglobin testing in hospital*, primary care and public health settings. The system provides quick, easy access to lab-quality results without compromising accuracy, even in demanding climates with high temperatures and humidity.

Maximize Time with Your Patience

• Immediate result in less than 1 second
• Work everywhere with flexible power supply options
• Easy to clean - less down time

Experience Daily Operational Efficiency

• Large display and symbols allow you to quickly monitor workflow and result
• “Let-go-grip” - no need to keep holding the microcuvette down during measurement
• Vendor-neutral connectivity offers flexibility for e.g. data transfer

Trust Your Results at the Point of Care

• Factory calibrated against the ICSH recommended reference method. No further calibration needed
• Robust design and accurate testing within a wide range of temperatures and humidity
• Built in self-test

Product Specification:

• Sample Material: Capillary or venous blood
• Measurement Range: 1.0-25.6 g/dl (10-256 g/L, 0.62-15.9 mmol/L)
• Measuring Time: <1 sec
• Sample Volume: 10 µL
• Dimensions: 87x143x45 mm (3.5x5.6x9 in)
• Weight: <250 g (0.55 lbs), batteries excluded
• Storage Temperature:
  - Analyzer: 0-50°C (32-122°F)
  - Microcuvettes: 10-40°C (50-104°F) or 6 weeks between -18-50°C (0-122°F)
• Operating Temperature: 10-40°C (50-104°F)
• Power: USB adapter or 3 AA batteries 1.5V Alkaline or 1.2 V NIHM
  Optional: HemoCue Rechargeable battery
• Interface: USB and Bluetooth Low Energy HemoCue Software Applications
• Quality Control: Built-in self-test and/or optional liquid controls
