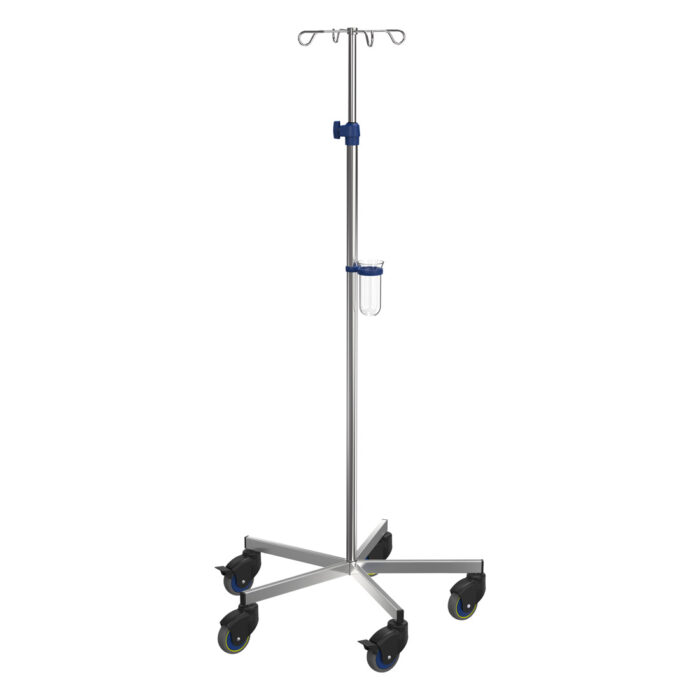

Infusion stand OP with weighting – Stainless Steel – Screw height adjustment

Additional information

Infusion stand, stainless steel, screw height adjustment, with weights, mono rollers 80 mm, boom profile 30x15 mm
Provita IV-Rods and Stands are employed in numerous of doctor practices as well as the intensive and normal care. In order to satisfy all demands in a hospital as well as daily normal care, Provita offers for every application area, an individual and perfect drip stand solution.

• Features:
• All plastic parts are lightfast
• Stainless Steel tubes according to DIN EN 10217-7
• Material ultrasonic and eddy current tested (according to EN 10246-9/3)
• The integrated pull-out limiter prevents the adjustable tubes from separating
• Safety bottle cross according to DIN ISO 15375
• Welded Stainless Steel castor pins reduce the risk of rusting and improve the mechanical and hygienic conditions
• Great running characteristic through high value 80 mm Mono castors
• A sealing cap prevents the IV-pole from hygienical senstive liquids
• The base legs are sealed with plastic plugs (no risk of injury)
• Low risk of pinching when retracting and extending the IV-pole thanks to the built-in safety distance
• No risk of injury thanks to the rounded shape of the bottle hooks
• The geometry of the hooks prevents the infusion bottle from falling out

Field of application: OR (initiation / recovery room)
Material: Stainless Steel
Colour of plastic parts: Blue
Bottle Holder: Stainless Steel to screw in, bottle holder
Number of hooks: 4
Arrangement of the hooks: 90° to each other
Type of height adjustment: Screw height adjustment
Maximum length/height: 2,150
Minimum length/height: 1,350
Inner tube diameter: Ø 18 mm
Outer tube diameter: Ø 25 mm
Length of outer tube: 1,000
Base leg profile: 30 x 15
Base weight: Unweighted
Base diameter (mm): Ø 635 mm
Castors: Mono castors
Castor diameter: Ø 80 mm
Drip vessel sterilizable: Yes
Total load capacity (kg): 9.5
Load capacity per system (kg): 8
Load capacity per hook (kg): 2
