POA

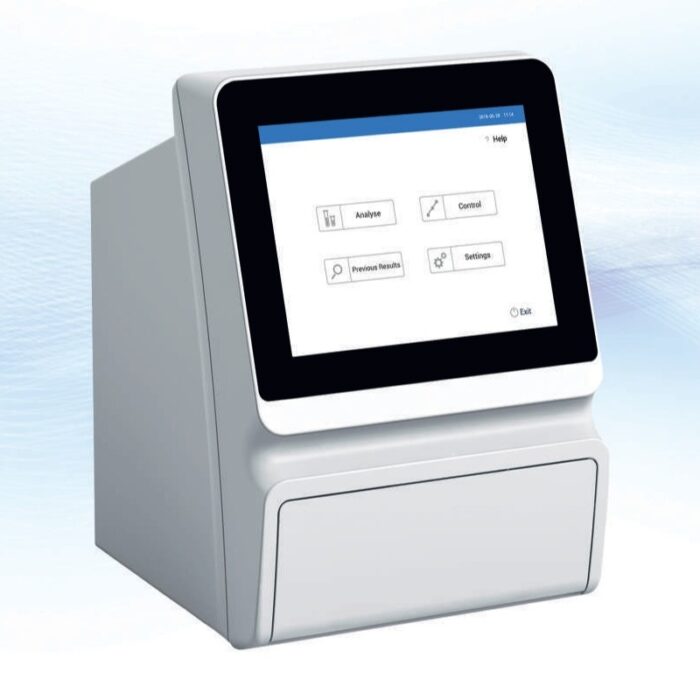

InSight HChem Chemistry Analyser

Woodley Equipment
Product no. BCH714
Manufacturer code. HCHEM

InSight HChem cM5 Chemistry Analyser is a compact point-of-care (POC) diagnostic analyser delivering fast, reliable results in just 7–10 minutes using self-contained, single-use reagent discs with built-in Realtime Quality Control (RQC) and automatic calibration. With a maintenance-free design, intuitive touch screen, and seamless data transmission to Laboratory Management Systems, it’s ideal for emergency rooms, remote healthcare centres, small laboratories, military field hospitals, oil and gas rigs, cruise ships, and other mobile or resource-limited clinical settings.

Read additional information

£0.00

This product is available on a price on application basis.

Request a price
30 Day Account
Pay via invoice for your order
Pre-approved account »
Accepting NHS POs
Send your purchase order direct
Send us your PO »
Free Quotes
Receive an official quote for your order
Submit quote request »
VAT Exemption
Purchase with 0% VAT for a disability or charity
VAT Free Purchases »

Additional information

InSight HChem cM5 Chemistry Analyser

InSight HChem cM5 Chemistry Analyser is a compact point-of-care (POC) diagnostic analyser delivering fast, reliable results in just 7–10 minutes using self-contained, single-use reagent discs with built-in Realtime Quality Control (RQC) and automatic calibration.

With a maintenance-free design, intuitive touch screen, and seamless data transmission to Laboratory Management Systems, it’s ideal for emergency rooms, remote healthcare centres, small laboratories, military field hospitals, oil and gas rigs, cruise ships, and other mobile or resource-limited clinical settings.

Features
  • 7–10 minutes analysis time
  • Self-contained, single-use reagent discs with 3 simple steps to read results
  • Built-in Realtime Quality Control (RQC) system with self-calibrating reagent discs
  • Automatic self-test and precision calibration
  • Touch screen
  • Maintenance free
  • Results transmitted via InSight p-LINK to Laboratory Management Systems
Suggested Applications
  • Cruise Ships / Leisure Yachts
  • Worldwide Embassies
  • Military Medicine – Field Hospitals, Submarines, and Surface Ships
  • Oil and Gas Rigs
  • Remote Mining Communities
  • Emergency Rooms
  • Small Laboratories
  • Paediatric Applications
  • Any POC Setting
  • Remote Healthcare Centres

Sample Type Whole Blood, Plasma, Serum
Sample Size 100μl
Time to Results 7–10 minutes
User Interface 8” full colour touch screen
Power Requirements 100–240 VAC, 50–60 Hz
Dimensions 320 (H) × 230 (W) × 260 (D) mm
Weight 5.5 kg
Parameters Up to 15 parameters on one rotor, 30 parameters configured into profiles
Reagent Disc Disposable pre-packaged with self-contained lyophilised reagent
Calibration Automatic self-calibration by scanning QR code on the aluminium foil pouch
Quality Control Liquid QC and built-in Realtime Quality Control (RQC) system
Communication Bi-directional input/output
Connection Interfaces Wi-Fi, USB, Bluetooth, compatible with LIS/EMR
Print Mode Built-in thermal printer, optional external printer, Medical Data Management Platform/LIS/EMR
Data Capacity Up to 50,000 sets of patient and quality control data
