IV-Pole, 55° angled – with screw height adjustment

Additional information

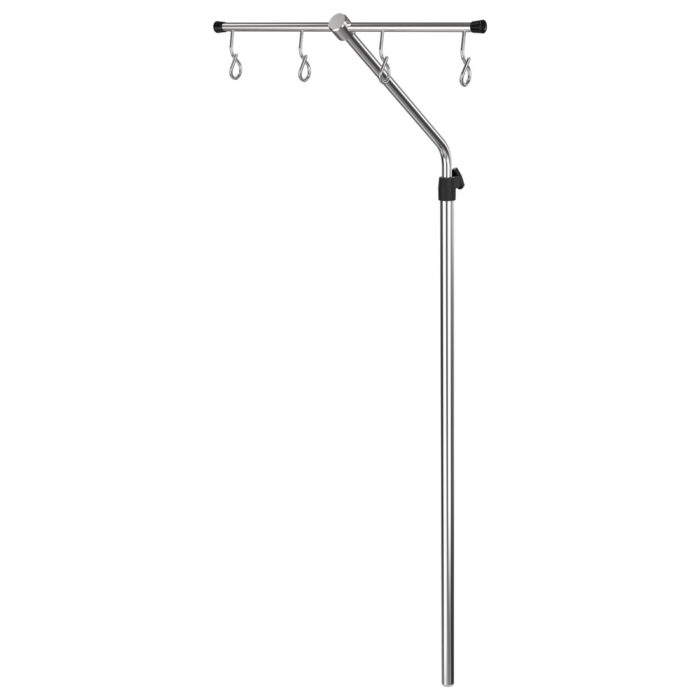

Provita IV-Pole, 55° Angled – with Screw Height Adjustment

The Provita 55° Angled IV-Pole is a stainless steel infusion pole designed for space-efficient positioning of infusion bottles and bags. Its angled construction provides an approximately 300mm lateral offset, helping position infusion containers away from the mounting point while maintaining easy access during patient care.

The pole features stepless screw height adjustment from approximately 1250mm to 1800mm, allowing the working height to be adapted quickly to suit different clinical requirements. Four in-line safety hooks provide secure support for infusion containers.

Manufactured from stainless steel, the pole is suitable for professional use in hospitals, clinics and treatment environments where reliable, compact infusion support is required.

Key Features

• 55° angled IV pole design
• Approximately 300mm lateral offset
• Stepless screw height adjustment
• Adjustable from approximately 1250mm to 1800mm
• Four in-line infusion hooks
• Maximum load of 2kg per hook
• Stainless steel construction
• 1000mm outer tube length
• 18mm inner tube diameter
• 25mm outer tube diameter
• Built-in safety distance helps reduce the risk of pinching during adjustment
• Designed for compact, space-saving infusion care

Technical Specification

Additional Questions

Why is the Provita IV-Pole angled at 55°?
The 55° angled design creates an approximately 300mm offset, helping position infusion bottles and bags away from the mounting point while maintaining convenient access.

What is the height adjustment range?
The pole uses stepless screw height adjustment and can be positioned from approximately 1250mm to 1800mm.
