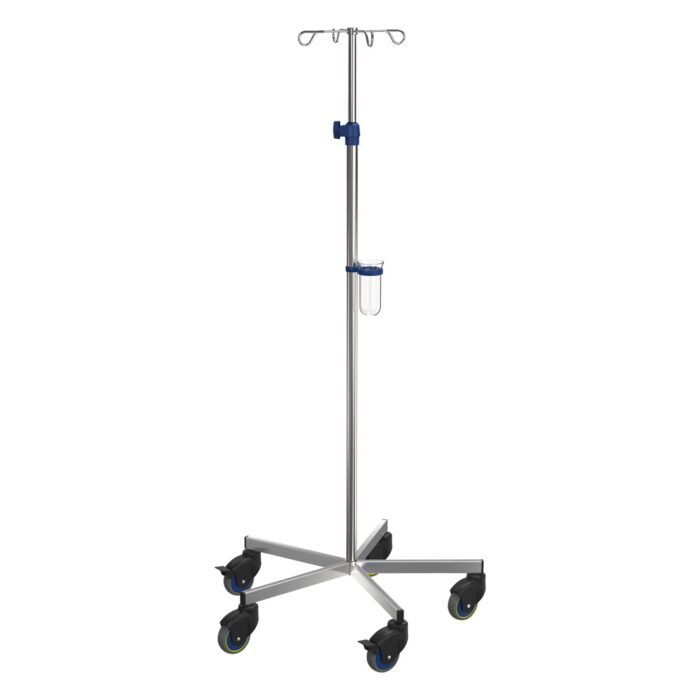

IV-stand / Drip Stand – Stainless Steel – Screw height adjustment

Additional information

Infusion stand with screw height adjustment - Stainless Steel - mono rollers 80 mm - boom profile 30x15 mm
Provita IV-Rods and Stands are employed in numerous of doctor practices as well as the intensive and normal care. In order to satisfy all demands in a hospital as well as daily normal care, Provita offers for every application area, an individual and perfect drip stand solution. Hereby also contributing with an essential and extensive accessory program.
comfortable height adjustment through a screw-height adjustment with an integrated, surface-gently mold clamping element

Technology
All plastic parts are lightfast
Stainless Steel tubes according to DIN EN 10217-7
Material ultrasonic and eddy current tested (according to EN 10246-9/3)
The integrated pull-out limiter prevents the adjustable tubes from separating
Safety bottle cross according to DIN ISO 15375
Welded Stainless Steel castor pins reduce the risk of rusting and improve the mechanical and hygienic conditions
great running characteristic through high value 80 mm Mono castors
a sealing cap prevents the IV-pole from hygienical senstive liquids

Field of application: OR (initiation / recovery room)
Material: Stainless Steel
Colour of plastic parts: Blue
Bottle Holder: Stainless Steel to screw in, bottle holder
Number of hooks: 4
Arrangement of the hooks: 90° to each other
Type of height adjustment: Screw height adjustment
Maximum length/height: 2,150
Minimum length/height: 1,350
Inner tube diameter: Ø 18 mm
Outer tube diameter: Ø 25 mm
Length of outer tube: 1,000
Base leg profile: 30 x 15
Base weight: Unweighted
Base diameter (mm): Ø 635 mm
Castors: Mono castors
Castor diameter: Ø 80 mm
Drip vessel sterilizable: Yes
Total load capacity (kg): 9.5
Load capacity per system (kg): 8
Load capacity per hook (kg): 2
