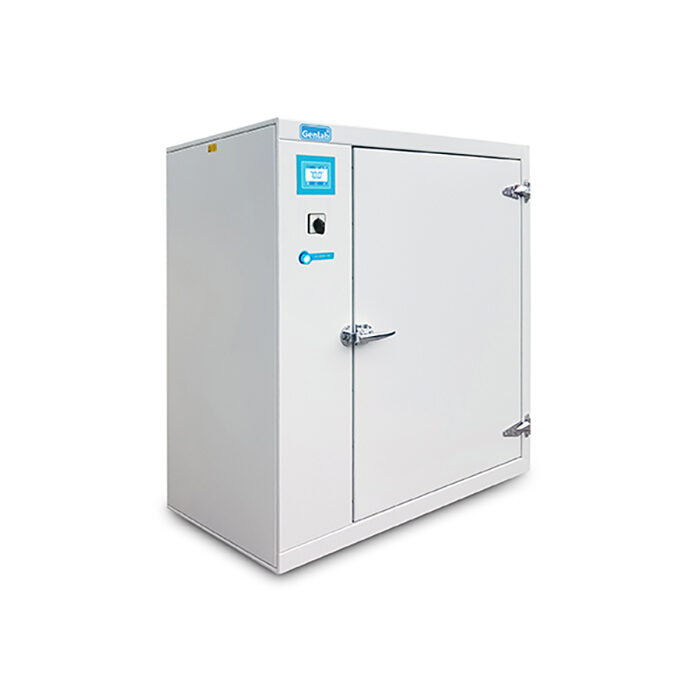

Genlab Large Capacity Incubator

Additional information

Genlab Large Capacity Multi-Purpose Incubators
The GENLAB Large Capacity Multipurpose Incubators offer a selection of highly efficient, reliable and cost effective units. They are suitable for larger applications of incubation, research and general laboratory applications. Featuring our latest touch screen control system which offers intuitive control and excellent accuracies designed for laboratory incubators.

Features

• Capacities 250 to 1250 litres
• 8 sizes (single door design)
• 9 sizes (dual door design)
• Temperature range: ambient + 8 to 70ºC
• Fluctuation +/-0.25ºC @ 37ºC
• Resolution 0.1ºC
• On screen historical trending (48 hours)
• 8 Stage profile control
• Count down timer
• 24/7 real time clock operation
• Manual or automatic overheat reset
• High accuracy Pt100B duplex sensors <0.8ºC
• Fan assisted circulation
• Excellent stability <+/-0.6ºC
• Low chamber uniformity
• Energy efficient with integral energy meter
• New - Set point lock feature

Options

• 10 Menu x 8 Stage Profile Controller with Cyclic feature - 10PRO
• Stainless steel chamber
• Viewing windows
• Inner glass doors
• Access ports (25, 50, 75, 100mm)
• Bespoke stands and stacking kits
• Audible warnings
• Traceable calibrations to national standards
• Extractor unit
• Extended warranty
• Explosion relief panels
• Internal lights
• Bespoke solutions available upon request

Design
The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD) with a stainless steel chamber available as an option.

Fitted with fixed shelf runners and removable chrome plated wire grid shelves.
The vertical style units (V) are fitted with single doors, the horizontal style units (H) are fitted with twin doors.

Heating
Heated by Incoloy sheathed elements positioned in the side fan duct for all units except the 250H and 350H which have a base fan duct.

Controls
The control system comprises of a bespoke touch screen interface that offers both accurate temperature control and an integral overheat system by using 2 individual Pt100 sensors. Advanced features can be turned on and off to suit bespoke heating applications and tailored to customer preference. Oven trending is disaplayed for up to 48 hours and optional upgrades are available for alarm outputs.

The control panels are fitted on the side of each unit except the 250H and 350H, which are fitted in the base.
