Large UV Cabinet/PCR Workstation with Dual UV Lamp, Recirculator & Internal Power Outlet
Large UV Cabinet/PCR Workstation with Dual UV Lamp, Recirculator & Internal Power Outlet

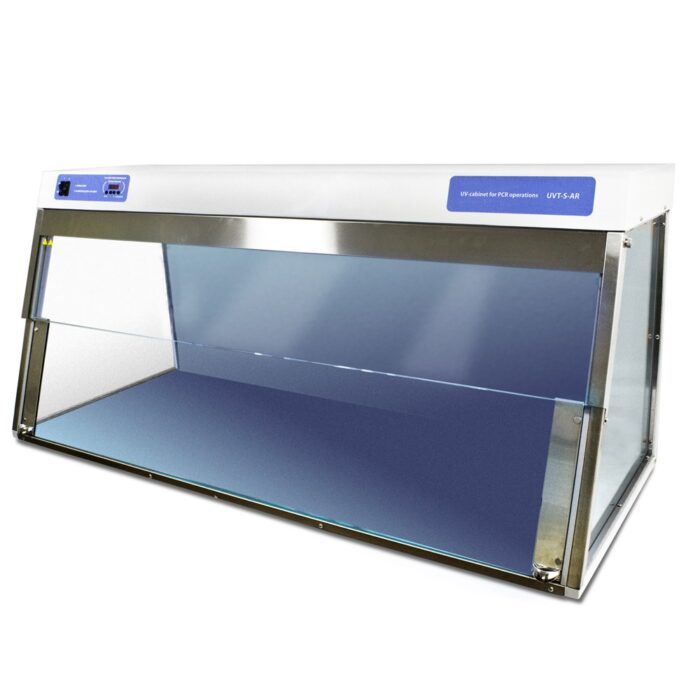

The Grant bio UVT-S-AR is a large capacity stainless steel PCR UV cabinet workstation with additional space for equipment and accessories to allow for more comfortable and convenient working in PCR applications.
Available on back-order
Additional information
Large UV Cabinet/PCR Workstation with Dual UV Lamp, Recirculator & Internal Power Outlet
The Grant bio UVT-S-AR is a large capacity stainless steel PCR UV cabinet workstation with additional space for equipment and accessories to allow for more comfortable and convenient working in PCR applications.
These UVT-S-AR cabinets are equipped with an open UV lamp installed in the upper part of the hood. UV-radiation from these lamps effectively disinfects the working area chamber, inactivating DNA / RNA fragments during 15-30 minutes of exposure. The digital timer controls the duration of the direct UV irradiation. An additional daylight lamp provides a bright, clear working area.
They are equipped with a high efficiency flow-type bactericidal UV cleaner-recirculator which provide constant decontamination inside the cabinet during operation. The UV cleaner-recirculator consists of UV lamp, dust filters and a fan. The recirculation effect increases the maximum density of the UV light making it sufficiently effective for DNA / RNA inactivation. The recirculator processes 360 UV-cabinet volumes per hour, creating permanently aseptic conditions within the cabinet.
- Robust construction with large working area, 1.2m x 0.52m working area
- UV surface irradiation – dual 30W 254 nm UV lamp
- UV protection – UV-protective film on glass panels
- UV exposure controlled by 24h digital timer
- Convenient, easy to use digital timer for accurate control of UV exposure
- Front opening with three adjustable positions for ease of access
- White lamp provides local illumination of the workplace to optimise visual control during operations
- Built-in UV cleaner-recirculator both increases the maximum density of UV light and generates 25 m³/h air flow exchange – prevents unwanted contamination and protects the user from direct UV light during manipulation
- Automatic switch-off of irradiated UV light when door opened
- Ample additional space for equipment and comfortable working.
- Practical science demonstration, sample warming, media preparation
- Markets: Education, schools, colleges and industry
| Dimensions (h x d x w) | 585 x 585 x 1245mm |
| Construction | Stainless steel frame and working area |
| Panels | Glass with UV-protective film |
| Front opening with three adjustable positions | • |
| Open UV lamp, 25W bactericidal, 254nm, ozone free | – |
| Open UV lamp, 30W bactericidal, ozone free | 2 |
| Bactericidal air recirculator, 25m3/h air flow exchange | • |
| UV recirculator, 25W (efficiency >99% per 1 cycle) | – |
| UV recirculaor, 30W (efficiency >99% per 1 cycle) | 1 |
| White lamp for workplace illumination – 15W | – |
| White lamp for workplace illumination – 30W | 1 |
| Radiation type | Ultraviolet (253.7m), ozone free |
| Optical transmission | 95% |
| Digital timer (non stop) | 0 to 24 hours |
| Internal power outlets | 3 |
| Internal working area | 1200 x 520mm |
| Flow rate | 70m3/h |
| Power consumption – 230V | 530W (4.5A) |
| Power consumption – 120V | 315W (1.4A) |
| Nominal operating voltage | 120 (60Hz) or 230 (50Hz) |
| Weight | 58kg |
