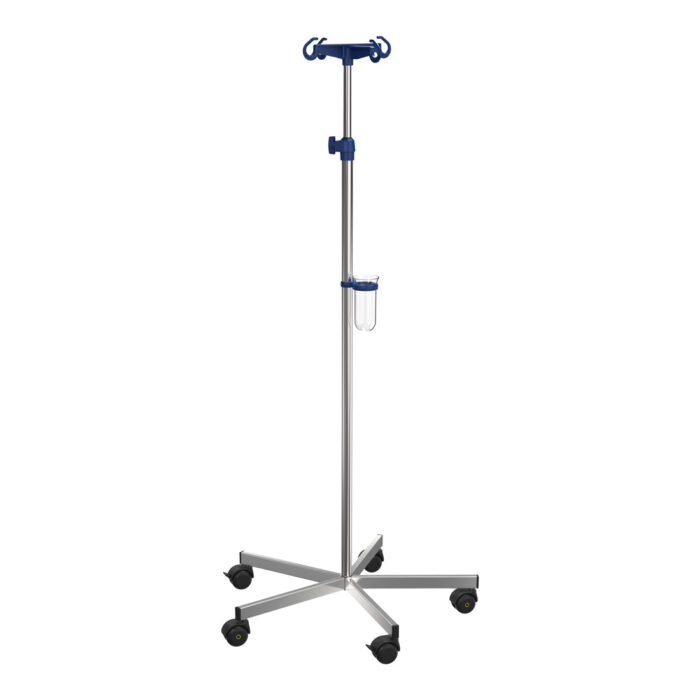

MRI – I.V. Stand / Drip stand – For MRI’s up to 1.5 Tesla – Twin Castors

Additional information

Infusion stand MRI (up to 1.5 Tesla)with screw height adjustment - Stainless Steel - double castors 50 mm
Provita IV-Rods and Stands are employed in numerous of doctor practices as well as the intensive and normal care. In order to satisfy all demands in a hospital as well as daily normal care, Provita offers for every application area, an individual and perfect drip stand solution. Hereby also contributing with an essential and extensive accessory program.

Features:

• Effective infusion care by securely hanging infusion bottles and bags
• MRI-compatibility due to the processing of non-magnetic material
• All plastic parts are lightfast
• Castors with non-marking tread
• Stainless Steel tubes according to DIN EN 10217-7
• Material ultrasonic and eddy current tested (according to EN 10246-9/3)
• The integrated pull-out limiter prevents the adjustable tubes from separating
• Safety bottle cross according to DIN ISO 15375
• Welded Stainless Steel castor pins reduce the risk of rusting and improve the mechanical and hygienic conditions
• The base legs are sealed with plastic plugs (no risk of injury)
• Low risk of pinching when retracting and extending the IV-pole thanks to the built-in safety distance
• No risk of injury thanks to the rounded shape of the bottle hooks
• The geometry of the hooks prevents the infusion bottle from falling out

Field of application: MRI
Material: Stainless Steel
Colour of plastic parts: Blue
Bottle Holder: Plastic
Number of hooks: 4
Arrangement of the hooks: 90° to each other
Type of height adjustment: Screw height adjustment
Maximum length/height: 2,150
Minimum length/height: 1,350
Inner tube diameter: Ø 18 mm
Outer tube diameter: Ø 25 mm
Length of outer tube: 1,000
Base leg profile: 30 x 15
Base diameter (mm): Ø 635 mm
Castors: Twin castors
Castor diameter: Ø 50 mm
Drip vessel sterilizable: Yes
Total load capacity (kg): 9.5
Load capacity per system (kg): 8
Load capacity per hook (kg): 2
