Nellcor FlexMax Small Flexible SpO2 Sensor (Under 20kg)

Additional information

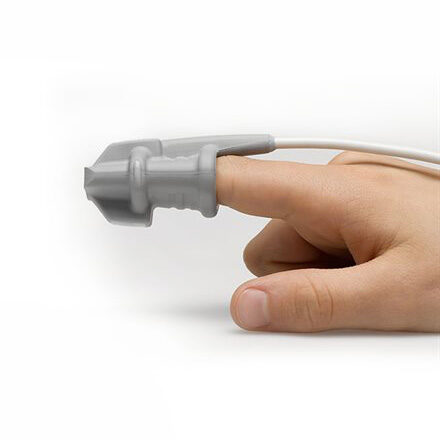

Nellcor FlexMax Small Flexible SpO2 Sensor (Patients under 20kg)
Sometimes your patients need short-term continuous monitoring — wherever they are. That’s why we developed the NellcorTM flexible SpO2 sensor. Our sensor is forward and backward compatible with NellcorTM-compatible pulse oximetry technology. Our new rubber pulse oximetry sensor:

• Is reusable
• Is designed for short-term (less than six hours) continuous monitoring for the majority of your patients
• Comes in two sizes — large and small — with a >20 kilogram weight range, one of the broadest available
• Features the pulse oximetry you trust NellcorTM SpO2 with OxiMax technology

And it’s compliant with the latest standards. Like those for rotary and fixed-wing aircraft. Our sensor has been tested to meet:

• Air worthiness vibration testing for both fixed and rotary winged aircraft
• Electromagnetic compatibility (radiated emissions) levels in accordance with standard DO-160G

It meets extreme environment standards. We’ve tested our sensor from:

• 0 to 40 C operating temperature
• 15 to 95 percent non-condensing relative humidity (RH)
• 620 to 1060 hPa atmospheric pressure

All in compliance with IEC 60601-1-12:2014 and an ingress protection rating of IP33. (IP33 protects against solid particulates >2.5 mm and spraying water up to 60 degrees from vertical with no harmful effects.)

Our sensor will operate for 20 minutes at temperatures down to minus 20 C and up to 50 C.  When not in use, you can store our sensor in conditions of:

• From -40 C up to 70 C
• 15 to 95 percent non-condensing RH
