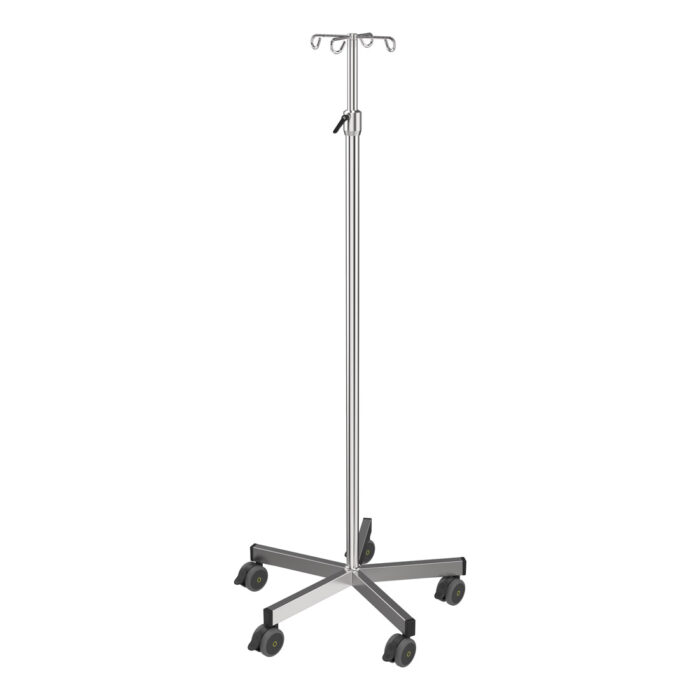

Provita OR IV-Stand with Base Weight and Safety Screw Height Adjustment
Provita IV-Rods and Stands are employed in numerous of doctor practices as well as the intensive and normal care.
In order to satisfy all demands in a hospital as well as daily normal care, Provita offers for every application area, an individual and perfect drip stand solution. Hereby also contributing with an essential and extensive accessory program.
- Effective infusion care by securely hanging infusion bottles and bags
- Completely stainless – enhanced hygiene and disinfection conditions through smooth, electropolished surfaces
Available on back-order
Additional information
OR IV-Stand with base weight with safety screw height adjustment
Provita IV-Rods and Stands are employed in numerous of doctor practices as well as the intensive and normal care. In order to satisfy all demands in a hospital as well as daily normal care, Provita offers for every application area, an individual and perfect drip stand solution. Hereby also contributing with an essential and extensive accessory program.
Advantages
- Effective infusion care by securely hanging infusion bottles and bags
- Completely stainless - enhanced hygiene and disinfection conditions through smooth, electropolished surfaces
Technology
- All plastic parts are lightfast
- Stainless steel tubes according to DIN EN 10217-7
- Material ultrasonic and eddy current tested (according to EN 10246-9/3)
- The integrated pull-out limiter prevents the adjustable tubes from separating
- Safety bottle cross according to DIN ISO 15375
- A sealing cap prevents the IV-pole from hygienical sensitive liquids
Safety
- The base legs are sealed with plastic plugs (no risk of injury)
- Low risk of pinching when retracting and extending the IV-pole thanks to the built-in safety distance
- No risk of injury thanks to the rounded shape of the bottle hooks
- The geometry of the hooks prevents the infusion bottle from falling out
Application
- Comfortable height adjustment through a screw-height adjustment with an integrated, surface-gently mold clamping element
Field of application | OR (initiation / recovery room) |
Material | Stainless steel |
Colour of plastic parts | Blue |

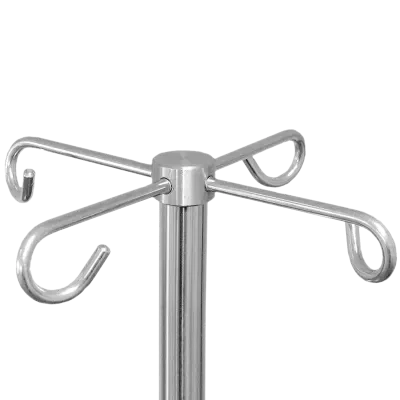

Number of hooks | 4 |
Arrangement of the hooks | 90° to each other |
Type of height adjustment | Stainless steel screw safety height adjustment, with softdrop |
Maximum length/height | 2.250 mm |
Minimum length/height | 1.500 mm |
Inner tube diameter | Ø 25 mm |
Outer tube diameter | Ø 33.7 mm |
Length of outer tube | 1.200 mm |
Base leg profile | 45 x 25 mm |
Base weight | Weighted |
Base diameter | Ø 635 mm |
Castors | Twin castors |
Castor diameter | Ø 75 mm |
Number of castors | 5 with brakes and elect. conductivity |
Drip vessel sterilizable | Yes |
Total load capacity (kg) | 30 |
Load capacity per system (kg) | 20 |
Load capacity per hook (kg) | 5 |
