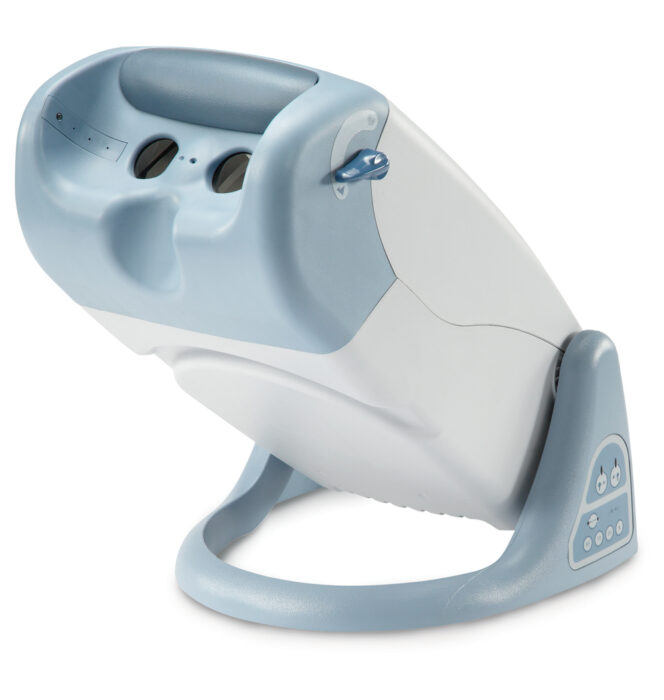

Titmus v4 Portable Vision Tester

Additional information

Designed for accurate and reliable vision screening, the V4 and V2 portable vision testers provide a comprehensive range of tests and features that can minimise consultation times, improve workflows and improve record keeping.



Testing
Visual acuity (near, far and optional intermediate), depth perception, colour perception, lateral and vertical phoria, and peripheral tests can all be completed in a very effi cient and accurate manner. The Titmus V4 can also provide night vision
as part of a comprehensive screening programme.

Accuracy
A standardised light source provides true colour testing environment, an adjustable viewing function and a soft easy to clean head sensor provide a controlled and accurate test environment for serial acuity measurements. Cost effective, there
is also no calibration required on either the V4 or V2 screener.

Remote control panel
The V4 is supplied with a remote control panel which identifi es all the test
parameter controls and positions. The V2 has the controls located on the instrument itself.



Technical specifications



Power supply:  110-240 VAC, 0.4A-0.2A,50/60 Hz

Cables:  1. Power cable, length 3 metres 2. V4 Control panel cable; FireWire connector, length 1 metre

Illumination:   As per ISO 8596 and ANSI Z80.21 Standards

Dimensions:   Width x length x height 28 x 43 x 19 cm units (closed condition)

Weight:    6 kg

Temperature:   +50°F to +104°F (+10°C to +40°C)

Humidity:    30% to 75% (non-condensing)

Pressure:    80-106 kPa



Meets the following CE, UL, and CSA Standards.
Europe:    EN 60601-1, IEC 60601-1, 3rd ed Class I, Annex IX of MDD 93/42/EEC
Class I Device

CB Scheme:   IEC 60601-1



V4 Includes



Membrane control panel
Ergonomic

New fluorescent light source

Portability

Soft foam headrest

Head positioning sensor

Peripheral vision testing

Test slide

Advance/reverse - Control panel

Night vision testing

Standard accessories



Standard accessories

• 8 test slides made from high grade photographic film sealed between optical-quality glass
• Training manual
• Record forms – pad of 100 forms to record test results
• 10 lens cleaning wipes
• Package of 3 fog eliminator cloths
• Accessory case for storing lens cleaning wipes, fog eliminator cloths, and lenses
• Dust cover for instrument storage
