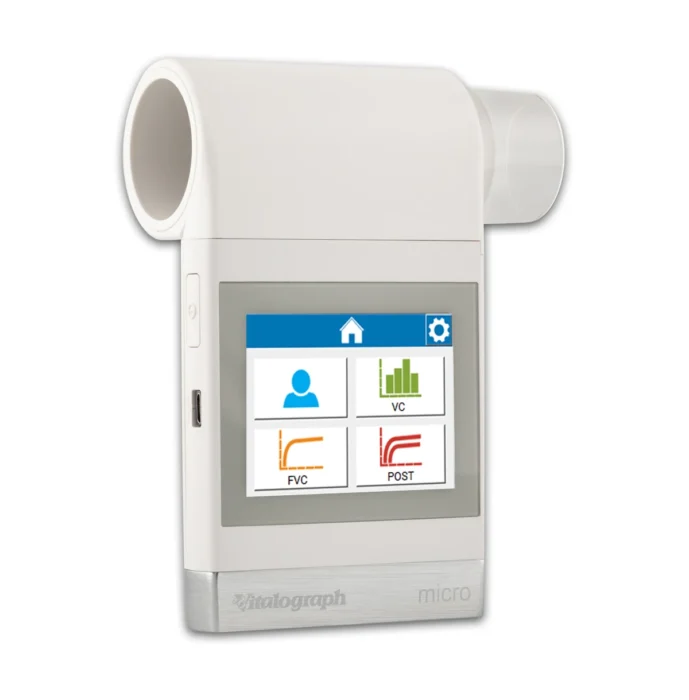

Vitalograph Micro Spirometer
Vitalograph Micro Spirometer A compact solution that offers simple and fast diagnostic spirometry in a lightweight, handheld device for accurate testing on the move. Powered by USB or batteries, the micro is portable and ideal for simple testing and reporting of spirometry.
£649.00
2 in stock
Additional information
Vitalograph Micro Spirometer
The micro™ is a handheld spirometer offering full feature functionality. Powered by USB or batteries, the micro is portable and ideal for simple testing and reporting of spirometry. Ideal for use on subjects within general healthcare and occupational health environments for point-of-care spirometry testing. Test results and graphs are displayed on the device for instant review. Vitalograph Device Studio reporting software is included as standard for generating PDF reports and receiving the latest firmware updates.
The flowhead on the micro can be set up to work remotely using the optional Remote Flowhead Kit. Separating the flowhead from the device allows the user to view the device screen during testing. Keeping the device clean is easy and inexpensive using Bacterial Viral Filters (BVF™), with validated cross-contamination efficiency >99.999%.
See the full Instruction For Use here »
The vitalograph Micro is supplied with:
- Vitalograph Device Studio Software
- Protective carry pouch
- USB cable
Spirometer Capabilities:
- VC, FVC and bronchodilator responsiveness testing, 48 selectable parameters, GLI predicted equations and Z-scores.
- Low running costs. No need for expensive disposable sensors, turbines, adaptors or flow tubes.
- No sensitive moving parts (unlike turbine spirometers) making it robust and consistently highly accurate even at very low or high flow rates.
- Save time & money on cleaning by using Vitalograph Bacterial Viral Filters(BVFTM).
- Includes Vitalograph Device Studio Software for creating editable PDF reports (for printing, filing, and uploading to EMR systems) and receiving the latest software updates directly to the device.
- Touchscreen for simple and intuitive operation.
- A calibration verification routine and guidance are included on the device (as recommended by ATS/ERS 2019 Technical Standards, ARTP)
- Remote flowhead (purchased separately) offers more versatile testing options.
This device comes with a Free 5-Year Warranty including unlimited technical support when registered within 30-days of purchase. Vitalograph also provide free certified training for all of its respiratory diagnostic solutions.
| Model Number | 6300 |
| Volume Accuracy | +/-2.5% |
| PEF Accuracy | +/- 10% or +/- 10L/min of the reading (ISO 23747:2015) |
| Performance Standards | ATS/ERS 2019 Technical Standards, ISO 23747:2015 & ISO 26782:2009 |
| Safety Standards | EN 60601-1:2006 + A1:2013 |
| QA/GMP Standards | EN ISO 13485, FDA 21 CFR 820, CMDR SOR/98-282 & JPAL, MDSAP |
| Dimensions | 142mm x 81mm x 24mm |
| Weight | 260g |
| Communications | USB 2.0 & Bluetooth 2/4 |
| Power Supply | 4 x 1.5V AAA batteries (6V)5V DC via USB 2.0 |
| Parameters Measured | VC , EVC, IVC, FVC, FIVC, FIVC/FVC, FEV0.5, FEV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV1, FEV1 ratio , FEV1/VC, FEV1/IVC, FEV1/FVC, FEV1/FIVC, FEV1/FEV6, FEV1/PEF, FEV3, FEV3/VC, FEV3/FVC, FEV6, PEF (L/s), PEF (L/min), FEF25, FEF50, FEF75, FEF0.2-1.2, FEF25-75%, FEF25-75/FVC, FEF75-85%, FIV1, FIV1/FVC, FIV1/FIVC, PIF (L/s), PIF (L/min), FIF25, FIF50, FIF75, FIF50/FEF50, FEF50/FIF50, MVVind, FMFT, FET, Rind, Vext, Vext/FVC, FEV1/EVC |
