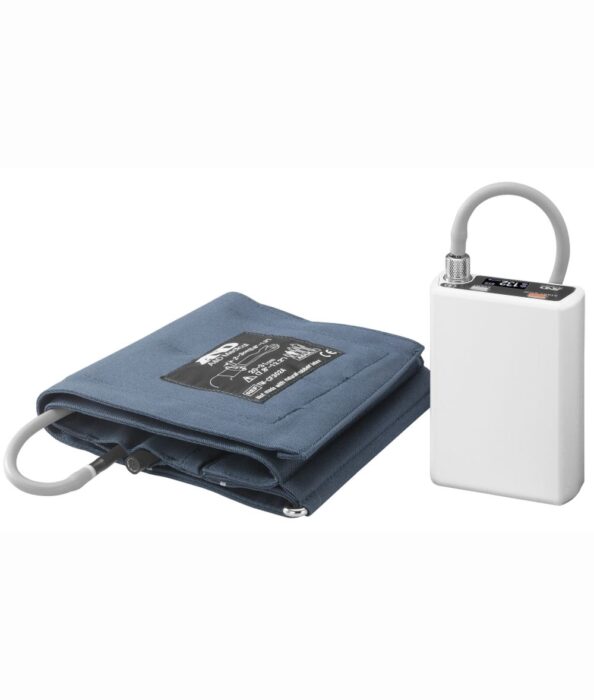

A&D Medical TM-2440 Ambulatory Blood Pressure Monitor

Additional information

A&D Medical TM-2440 ABPM Monitor

Compact & lightweight Ambulatory Blood Pressure Monitor, which incorporates our latest technology gained from over 40 years experience in developing and manufacturing precision measurement equipment.

Allows healthcare professionals to automatically monitor a patient’s blood pressure throughout the day. ABPM can help differentiate hypertension from white coat hypertension and the data generated can be used to adjust patient medication levels. This new ABPM range was validated in accordance with the new ISO810601-2 protocol, and the blood pressure accuracy was proven to be +/-3mmHg.

The TM-2440 features USB communication and weighs just 120g. The latest A&D Analysis software is easy to use and reports can be exported as PDF files to clinical management systems like SystmOne and EMIS. Detailed pulse waveform analysis of each measurement is recorded and can be viewed for additional quality checking.

Product Features:

• 24 hour ambulatory blood pressure monitoring range of devices
• Light weight - from 122 grams (excluding batteries)
• Compact - only 66mm x 24.5mm x 95mm (WxHxD)
• Oscillometric measuring method
• Automatically adjusts: Proper Cuff Pressure, Exhaust, End of Measurement
• ‘PatientView 360’ - Multi-sensor tracking of activity, temperature, air pressure
• Battery Power - only 2 alkaline or Ni-MH AA batteries
• Multiple measurement intervals - adapts to patient’s and healthcare professional’s exact requirements
• Bluetooth (BLE) or USB cable data output to computer or printer
• Local memory recording for up to 600 sets of data
• 24-hour clock and calendar
• Waterproof and Dustproof to IP22 Standard - designed ‘with the patient in mind’
• Can be integrated into an Electronic Patient Record System (EPR)
• Secure screw thread cuff connection - to avoid accidental disconnection/error readings
• 2 Display options: LCD - self measurement display, OLED - Ambulatory monitoring display
• 4 cuff options ranging from 15cm to 50cm
• Accuracy: blood pressure +/-3mmHg; pulse +/-5%
• Clinically Validated to ISO810601-2
• 3 year manufacturers warranty inclued

This ABPM is supplied with:

• Adult (20-32cm) latex free cuff
• Windows PC analysis software
• USB PC cable
• Carry pouch and waist belt
• 10 patient diary cards
• Adult cloth cuff protector
• Quick start user instructions
• Free remote installation and training included

TM-2440 ABPM Specification

Self Measure Mode (LED Display): Large display shows data from measurements in self-measurement mode. Easily check the time until the next ABPM measurement plus values in self-measurement mode. There are also icons for battery level, Bluetooth, AFib/IHB detection, clock, mode and memory status.

Weight: Weighing only 122 grams, it is the lightest in this class and the most comfortable. Your patient will hardly know they are wearing the monitor.

Compact Design: The new TM-2440 ise smallest in class, measuring just 66mm x 24.5mm x 95mm (WxHxD). Again ensuring comfort for the user.

Soft cloth cuff: Benefitting from a soft, machine washable cloth, to ensure maximum comfort whilst the patient wears the device over long periods of time. Cuff range offers fitting from 15cm through to 50cm.

AFib+: New A&D monitors feature unique Afib+ technology which allows patient screening for both Irregular HeartBeat and Atrial Fibrillation (AFib).

Connectivity: The new A&D ABPM range offer both USB and BLE (Bluetooth Low Energy/Bluetooth Smart) as standard. For flexibility and easy data transfer to Electronic Patient Record (EPR) systems including Systemone and EMIS.

Secure threaded cuff connection: The TM-2440 benefits from a secure thread-locking connection. Ensuring the cuff doesn’t become detached whilst the patient is wearing the device during their everyday life.

‘ABPM should be performed only with properly validated devices as an accessory to conventional measurement of BP [blood pressure]. ABPM requires considerable investment in equipment and training and its use for screening purposes cannot be recommended. ABPM is most useful for identifying patients with white-coat hypertension (WCH), also known as isolated clinic hypertension.
