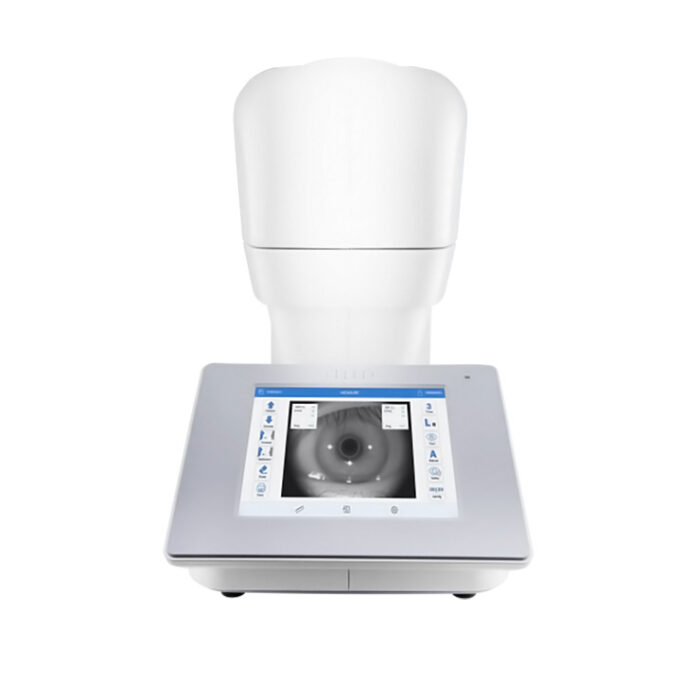

CrystalVue Tonovue Auto NCT
CrystalVue Automatic Non-Contact Tonometer TonoVue-P integrates IOP and central corneal thickness (CCT) measurements in one unit.
Additional information
Automatic Non-Contact Tonometer TonoVue
With 3D tracking technique, multiple IOP measurements can be done by single tap.
All Done by Single Tap
With fully automatic 3D tracking technique, multiple IOP measurements can be done by single tap on the screen. Simply click ‘start’, the examination will begin and the result will be printed out directly.
Large Screen and Touch Panel
The large 8” screen and touch panel is easy to control, making IOP measurement simple and fast. It also makes input, search, and display of the patients' database easy.
Patient Friendly
The Automatic Air Puff Control System controls the amount of air required for each individual eye. It provides softer and quieter air puff, which makes patient feel less uncomfortable.
Multiple Selectable Modes
Users are able to select either automatic or manual mode, set 1-3 times of measurements, and adjust IOP range based on their preference and patients' needs.
Thermal Printer with Auto Cutter
The measurements can be printed out automatically by thermal printer, and then be nicely cut by the auto cutter.
——
Type | Automatic Non-Contact Tonometer |
Intraocular Pressure Measurement range | 1- 60 mmHg |
Measurement range setting | Auto/ 30 mmHg/ 60 mmHg |
Measurement principle | Air puff method |
Display units | mmHg/hpa |
Working distance | 11 mm |
Alignment | Fully automatic 3D tracking |
Chinrest | Motorized |
Display | 8” LCD touch screen |
Printer | Thermal line printer with auto cutter |
Interface | USB / RS232 |
Power supply | AC100V to 240V, 50/60Hz, auto selected |
Operating Environment | Temperature: 10℃ to 35℃; Humidity: 30% to 90% |
Dimensions (WxDxH) | 282 mm x 500 mm x 500 mm |
Weight | 17 Kg |
