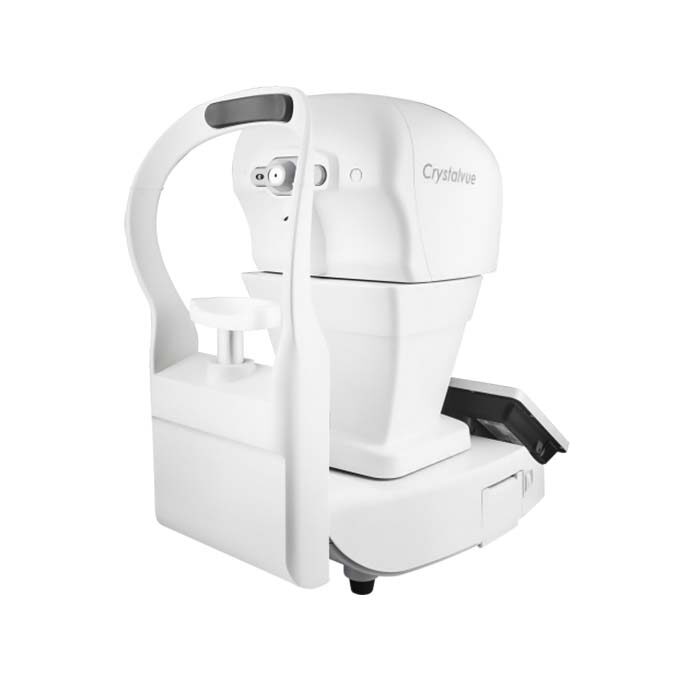

CrystalVue Tonovue with Pachymetry
CrystalVue Tonovue with Pachymetry
With 3D tracking technique, multiple IOP measurements can be done by single tap.
Additional information
CrystalVue Tonovue with Pachymetry
With 3D tracking technique, multiple IOP measurements can be done by single tap.
All Done by Single Tap
With fully automatic 3D tracking technique, multiple IOP measurements can be done by single tap on the screen. Simply click ‘start’, the examination will begin and the result will be printed out directly.
Large Screen and Touch Panel
The large 10'1" screen and touch panel is easy to control, making IOP measurement simple and fast. It also makes input, search, and display of the patients' database easy.
Auto CCT Measurement
Taking the technology of Scheimpflug camera and 3D auto tracking, TonoVue-P provides safe, easy and accurate measurement for central corneal thickness (CCT).
Multiple Selectable Modes
Users are able to select either automatic or manual mode, set 1-3 times of measurements, and adjust IOP range based on their preference and patients' needs.
Thermal Printer with Auto Cutter
The measurements can be printed out automatically by thermal printer, and then be nicely cut by the auto cutter.
| Type | Digital non-mydriatic retinal camera |
| Type of photography | Colour, digital red-free, anterior eye image |
| Image format | JPEG (default), PNG (optional) |
| Field of view | 45 degrees |
| Minimum pupil size | 3.8mm |
| Working distance | 25mm |
| Focus adjustment range | -15D to +10D (without compensation lens) / -35D to +30D (with compensation lens) |
| Flash intensity | 12 levels, can be set manually |
| Light source | Observation light source - infrared LED. Flash light source - white LED |
| Auto exposure | Yes |
| Image | 5MP |
| Eye fixation | Internal six points targets |
| Mount movement | 100mm (logitudinal), 90mm (lateral) |
| Chinrest movement | 70mm |
| Networking capability | Yes |
| PC connection | USB2.0 |
| Power supply | AC 100V to 240V, 50/60/Hz, auto selected |
| Operating environment | Temperature: 10℃ to 35℃. Humidity: 30% to 90% (no condensation) |
| Dimensions (WxDxH) | 150mm x 225mm x 335mm (excluding chinrest) |
| Weight | 2kg (excluding chinrest) |
