Sale!

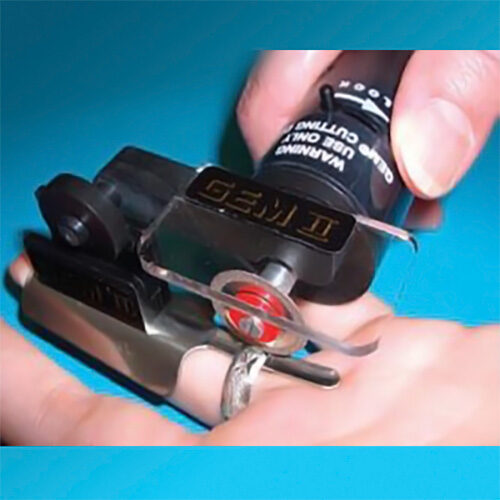

Gem II Battery Powered Ring Cutter Rechargeable

Brand Aztec
Product no. HSU539
Manufacturer code. A-Z 300/R

The GEM II Ring Cutter with rechargable battery is designed to be used with two different types of ring cutting disc. The A-Z 223 Diamond Cutting Disc is for use on hard metal rings such as, Iron, Steel and Platinum as well as the newer ultra-hard metals which are being used in jewellery such as Tungsten, Titanium and Stainless Steel. For softer metal rings such as gold, silver, brass and copper there is the A-Z 224 Cutting Carbide Disc.

Read additional information

5 in stock

was £262.80
£192.00
with VAT
Or
£160.00
without VAT
Shop accessories for this product
1-2 Working days
with tracked delivery

30 Day Account
Pay via invoice for your order
NHS Orders
We supply to over 12,000 medical providers
Quote Request
Receive an official quote for your order
VAT Exemption
Purchase with 0% VAT for a disability or charity

Additional information

Gem II Battery Powered Ring Cutter Rechargeable Designed, developed and patented, the GEM II Ring Cutter was the first battery powered ring cutter to be commercially available. A light weight, single hand operated system that is quick, simple and safe to operate, capable of cutting through rings made of extremely hard metals that would be impossible to cut through with a manual ring cutter. Unlike the manual ring cutter the Gem II ring cutter's uniquely designed cutting disc guide component allows a ring or series of rings (up to 20mm wide and 5mm deep) to be cut through in one single uninteruppted operation. A single hand operated unit which is used in Accident & Emergency Departments, Minor Injury Units and Fire and Rescue services across the U.K and throughout Europe and the Middle East, the GEM II is a light weight, cordless ring cutting device that is capable of cutting effortlessly through just about any material from plastic to titanium rings up to 20 mm wide and 5 mm deep. The GEM II Ring Cutter is designed to be used with two different types of ring cutting disc. The A-Z 223 Diamond Cutting Disc is for use on hard metal rings such as, Iron, Steel and Platinum as well as the newer ultra-hard metals which are being used in jewellery such as Tungsten, Titanium and Stainless Steel. For softer metal rings such as gold, silver, brass and copper there is the A-Z 224 Cutting Carbide Disc. Features

  • Efficient, simple and safe to operate.
  • Cuts through materials that would take a manual ring cutter a lon time or even prove impossible.
  • Flexible finger guard permits ease of insertion under ring or series of rings.
  • Replacing cutting disc requires no technical expertise or specialised tools.
  • Powered by 4 standard AA size alkaline or re-chargeable batteries.
  • Single hand touch button operation
  • Thin flexible finger guard reducing patient trauma when inserted under a tightly fitting ring
  • Will cut any metal even as hard as chrome plated steel up to 20 mm wide and 6 mm deep, in seconds
  • Supplied complete with batteries, 1 x diamond & 2 silicone carbide cutting discs, disc replacement tool, Ring Cutting Techniques DVD all in a presentation case
  • GEM II is CE Marked
  • Batteries not included
Specification
  • Motor Re 280/3 Dry Bearing Weight: 44 gms
  • Hand Piece Weight: 127 gms
  • Power Source: 6 volt DC (4xAA) Batteries
  • No Load Speed: 3 v 8,800 rpm / 6 v 16,000 rpm
  • Torque: 3 v 63 gcm / 6 v 120 gcm
  • Stall Torque: 3 v 126 gcm / 6 v 240 gcm
  • Sound Pressure: 61.08 dB (A)
  • Sound Power: 73.58 dB (A)
  • Vibration Levels: 3.2 m/s2
Contents:
  • GEM II Ring Cutter
  • Finger Guard Unit
  • Battery Cartridge
  • 1 x Diamond Cutting Disc (A-Z 223)
  • 2 x Carbide Cutting Disc (A-Z 224)
  • Battery Recharger Unit
  • Rechargeable Batteries x 6
  • Instructional DVD
  • User Manual
