Gem II Battery Powered Ring Cutter

Additional information

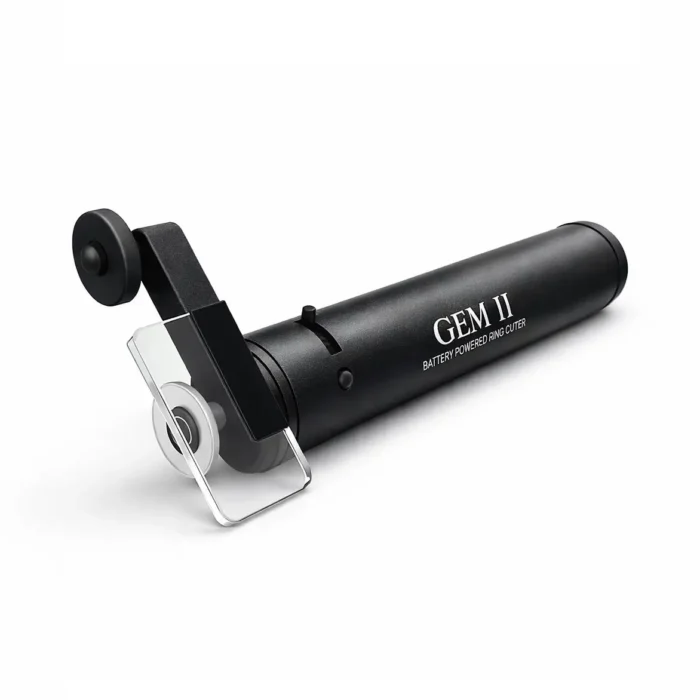

Gem II Battery Powered Ring Cutter The GEM II Ring Cutter, a battery-powered device, revolutionized ring cutting technology with its unique design and simple operation. It has been patented and is the first of its kind to be available commercially. This lightweight, single-hand operated system can effortlessly cut through extremely hard metals that would otherwise be impossible to tackle with a manual ring cutter. Unlike its manual counterparts, the GEM II ring cutter's cutting disc guide allows for uninterrupted cutting of a single ring or a series of rings (up to 20mm wide and 5mm deep) in one continuous operation. Emergency departments, minor injury units, and fire and rescue services across the U.K, Europe, and the Middle East rely on the GEM II. This cordless ring cutting device can handle various materials, ranging from plastic to titanium rings, up to 20mm wide and 5mm deep. The GEM II Ring Cutter utilizes two types of cutting discs. The A-Z 223 Diamond Cutting Disc is ideal for hard metal rings like Iron, Steel, Platinum, Tungsten, Titanium, and Stainless Steel. On the other hand, the A-Z 224 Cutting Carbide Disc is perfect for softer metal rings such as gold, silver, brass, and copper.

Features

• Efficient, simple and safe to operate.
• Cuts through materials that would take a manual ring cutter a lon time or even prove impossible.
• Flexible finger guard permits ease of insertion under ring or series of rings.
• Replacing cutting disc requires no technical expertise or specialised tools.
• Powered by 4 standard AA size alkaline or re-chargeable batteries.
• Single hand touch button operation
• Thin flexible finger guard reducing patient trauma when inserted under a tightly fitting ring
• Will cut any metal even as hard as chrome plated steel up to 20 mm wide and 6 mm deep, in seconds
• Supplied complete with batteries, 1 x diamond & 2 silicone carbide cutting discs, disc replacement tool, Ring Cutting Techniques DVD all in a presentation case
• GEM II is CE Marked
• Batteries not included

Specification

• Motor Re 280/3 Dry Bearing Weight: 44 gms
• Hand Piece Weight: 127 gms
• Power Source: 6 volt DC (4xAA) Batteries
• No Load Speed: 3 v 8,800 rpm / 6 v 16,000 rpm
• Torque: 3 v 63 gcm / 6 v 120 gcm
• Stall Torque: 3 v 126 gcm / 6 v 240 gcm
• Sound Pressure: 61.08 dB (A)
• Sound Power: 73.58 dB (A)
• Vibration Levels: 3.2 m/s2

• GEM II Ring Cutter
• Finger Guard Unit
• Battery Cartridge
• 1 x Diamond Cutting Disc (A-Z 223)
• 2 x Carbide Cutting Disc (A-Z 224)
• Instructional DVD
• User Manual
