Vitalograph Pneumotrac Spirometer with Spirotrac 6 Software

Product no. HRS201.1
Manufacturer code. 77902

The Vitalograph Pneumotrac is a full-feature desktop spirometer supplied complete with Spirotrac 6 software to integrate with your PC, laptop or tablet. Improved sleek design with no moving parts for optimal robustness. Compatible with all major EMR systems via HL7.

Read additional information

was £1,800.00
with VAT
without VAT
Shop accessories for this product
Expected delivery:
7 Working days

30 Day Account
Pay via invoice for your order
NHS Orders
We supply to over 12,000 medical providers
Quote Request
Receive an official quote for your order
VAT Exemption
Purchase with 0% VAT for a disability or charity

Additional information

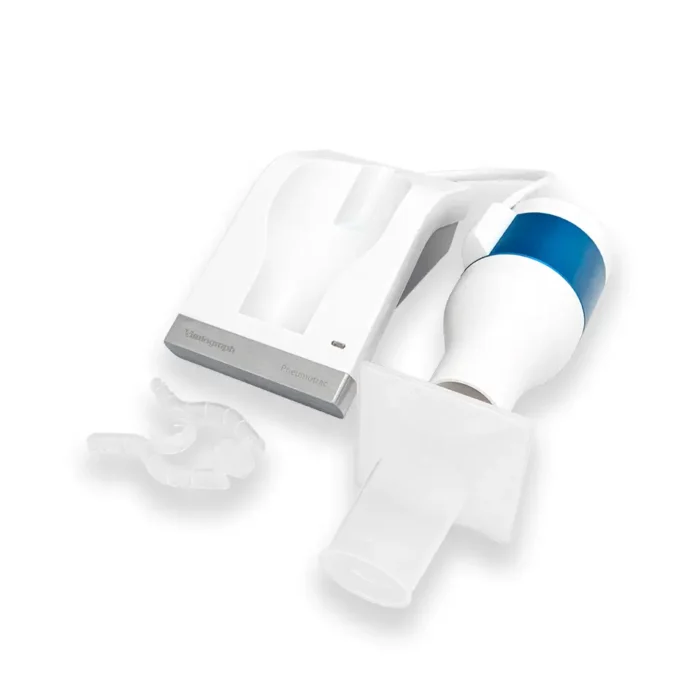

Vitalograph Pneumotrac With Spirotrac 6 Software

Full featured desktop spirometry complete with Spirotrac software to integrate with your PC, laptop or tablet.
The next generation Vitalograph Pneumotrac™ Spirometer combined with the new and improved Spirotrac® respiratory software is a powerful and flexible respiratory diagnostic device. Improved sleek design with no moving parts for optimal robustness. The updated spirometer unit has a reduced desktop footprint allowing spirometry testing to take place wherever your PC, laptop or tablet can go.

This product is suitable for testing both adults and pediatrics due to the extremely reliable Fleisch flow technology which is accurate even at very low flow rates. Pneumotrac with our redesigned Spirotrac 6 software is compliant with the 2019 ATS/ERS Technical Standards, ensuring your service meets international guidelines on accuracy and reporting. Spirotrac 6 features a brand new intuitive interface with advanced quality control feedback for rapid and easy testing. Compatible with all major EHR/EMR systems via HL7.

Spirometer Features:

  • Meets ATS/ERS 2019 technical standards.
  • Supports Full Feature Spirometry Testing and Bronchodilator Responsiveness Testing with over 50 available parameters.
  • Highly accurate, robust, and stable flow measuring technology.
  • Lowest running costs & environmentally friendly; no need for costly disposable sensors, turbines, or flow tubes.
  • Save time & money on cleaning using Vitalograph Bacterial Viral Filters (BVF™) with validated cross-contamination efficiency >99.999%, protecting the device, patient, and operator.

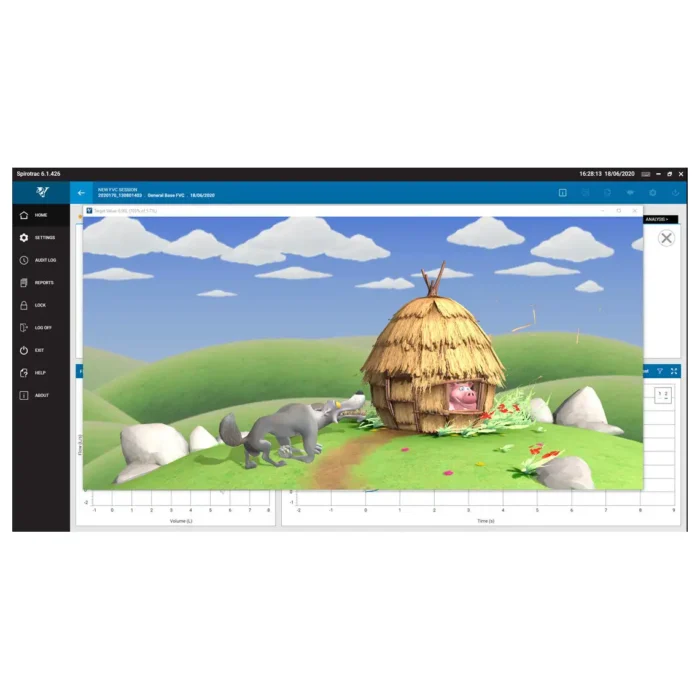

  • Real-time curves and all new incentive animations encourage optimal subject performance.
  • Instant quality feedback using the latest test/session acceptability, usability and repeatability criteria
  • Automatic computer interpretation based on ATS/ERS & GOLD standards.
  • Fast evaluation of results using latest GLI spirometry predicted equations with LLN, %Pred and Z-scores. Other predicted equations are selectable.
  • Ensuring best practice with quick and easy calibration verification routines recommended by ATS/ERS 2019 Technical Standards.
  • Automatic BTPS correction with built-in temperature sensor for optimal accuracy.
  • Share test data easily with compatible Electronic Medical Record (EMR) systems through HL7.

Vitalograph Pneumotrac Specification
Model Number6800
Flow Detection PrincipalFleisch flow technology
Volume AccuracyWithin ±2.5%
Flow Measurement RangeMax. flow rate ±960 L/min (±16 L/s) Min. flow rate ±1.2 L/min (±0.02 L/s)
PEF AccuracyWithin ±10%
Back pressureLess than 0.1kPa/L/second @ 14L/s
Performance standards & guidelinesATS/ERS 2019 Technical Standards, ISO 23747:2015 & ISO 26782:2009
Safety standardsEN60601-1:2006 + A1:2013, EN 60601-1-2:2015
QA/GMP standardsEN ISO 13485, FDA 21 CFR 820, SOR/98-282 JPAL MDSAP
Dimensions160mm (length) x95mm (width) x 115mm (height)
Power Supply5V DC via USB
Spirotrac 6 Software Specification Spirotrac 6 Software
