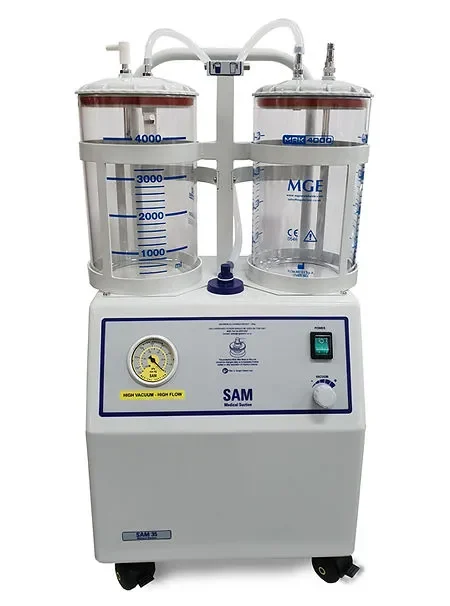

SAM 35 Suction Unit – 2 x 2L Disposable Liner System
The SAM 35 aspirator is a top quality surgical suction unit providing high flow, high vacuum performance. The unit is designed primarily for major operating theatre use and can also be used in lipo-suction procedures.
Its reputation for reliability and ease of operation has established it among the most widely used units in the medical world today.
Additional information
SAM 35 Suction Unit – 2 x 2L Disposable Liner System - SERRES | VAXSAX | ABBOTT
The SAM 35 aspirator is a top quality surgical suction unit providing high flow, high vacuum performance. The unit is designed primarily for major operating theatre use and can also be used in lipo-suction procedures.
Its reputation for reliability and ease of operation has established it among the most widely used units in the medical world today.

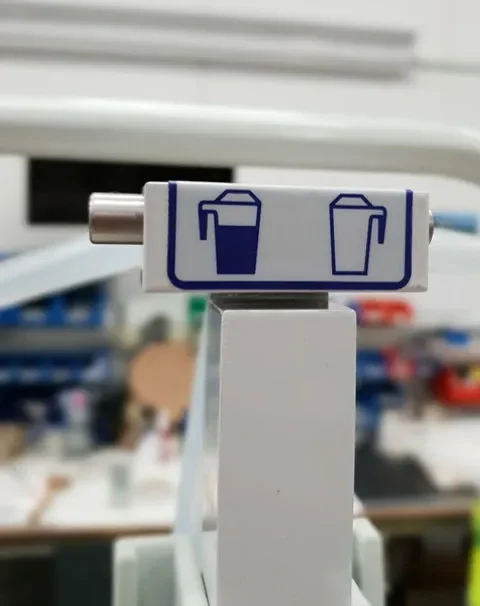

As standard, the SAM 35 incorporates two autoclavable SAM 2 collection vessels fitted with float valve systems, providing automatic shut-off to avoid over-flow
The SAM 35 can also be fitted with a choice of disposable collection systems including Serres, Abbott and VacSax
At the heart of the unit is our new MG50 oil free diaphragm vacuum pump that requires minimal maintenance and helps prevent cross contamination. The MG50 also benefits from an enclosed crankcase for quiet operation, IP44 totally enclosed fan cooled (TEFC) permanent capacitor motor with long life sealed bearings and thermal protection.
| Vacuum | 0 to 0.9 bar / 0 to 675 mmHg |
| Flow Rate | 50 l/min |
| Collection Jars | 2 x 2 litre |
| Unit Dimensions | 84 x 39 x 33 (H x W x D cm) - 2x2 |
| Weight | 25kg |
| Noise Level | 55dB |
| Voltage | 230v +/- 10%~ 50/60Hz 110v +/- 5%~ 50/60Hz |
| Compliance |
Medical Directive 93/42/EEC BS EN ISO 10079-1 BS EN 60601-1 BS EN 60601-1-2 |
