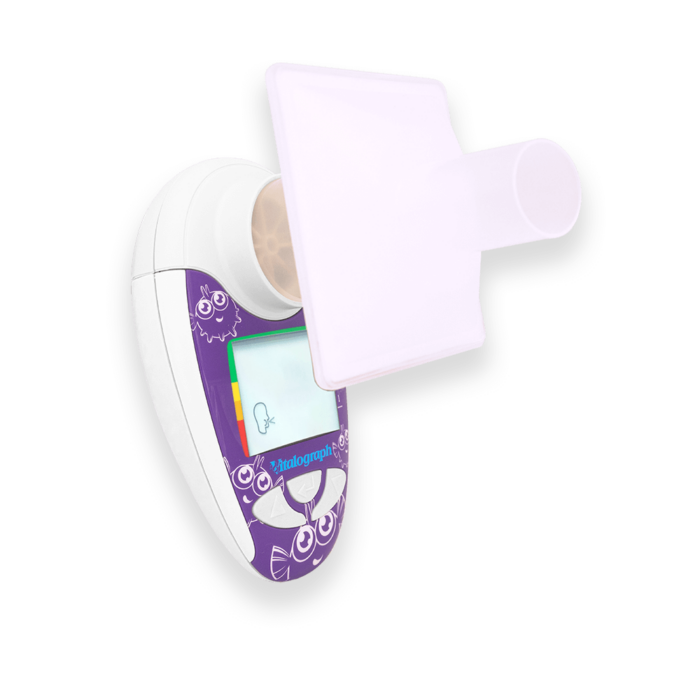

Vitalograph asma-1 Asthma Monitor – Child 40065

Product no. HRS705
Manufacturer code. 40065

Vitalograph asma-1 Asthma Monitor – Child 40065. Designed to be attractive and simple to use for children.

Read additional information

with VAT
without VAT
Shop accessories for this product
Expected delivery:
7 Working days

30 Day Account
Pay via invoice for your order
NHS Orders
We supply to over 12,000 medical providers
Quote Request
Receive an official quote for your order
VAT Exemption
Purchase with 0% VAT for a disability or charity

Additional information

Handheld device for remote Asthma patient monitoring in children or adults
The Vitalograph asma-1™ Child is an accurate electronic respiratory monitor suitable for home use and for both children and adults. It offers greater accuracy than mechanical peak flow meters and eliminates the need for paper record cards.

Ideal for monitoring at home, work, in clinical trials, in primary or secondary care.

  • Measures FEV1, FEV0.5, FEV0.75 and PEF.
  • Displays % of personal best FEV1.
  • Electronic record – no need for record cards.
  • Set unique ‘personal best’ zones for test subjects.
  • Automatically stores best values in a test session.
  • Quality of blow indicator.
  • 600 test memory.
  • Suitable for use in clinic with Bacterial Viral Filters (BVF™).
  • Compliant with: ATS/ERS 2019 and ISO 23747 / 26782 / 13485
  • Large, easy to read display.

One of our 4000 Series of respiratory monitors and screeners, the asma-1 comes with:

  • Carry Pouch
  • Instructions for use
  • 2 x AAA Batteries
  • Plastic mouthpiece for single patient use
  • Product Respiratory Monitor asma-1 Child

Model - 4000
Dimensions - 109mm (length) x 63mm (width) x 42mm (height)
Flow Detection Principal - Stator rotor
Accuracy - Better than ± 3% (FEV1)
Back Pressure - Less than 0.15kPa/L/second @ 14L/s
Measurement Range - FEV1: 0 – 9.99 L BTPS
Maximum Test Duration - 6 seconds
Quality Check - Slow start of test (Vext>5%) or a cough detected in the first second
Power Supply - 3V (2 x 1.5V AAA batteries)
Expected Battery Life - 3 months of use at 3 tests per day
Performance Standards & Guidelines - ATS/ERS 2019, ISO 23747:2015, ISO 26782:2009
Auto Power Down Time - 2 minutes
