Vitalograph asma-1 BT Respiratory Monitor

Additional information

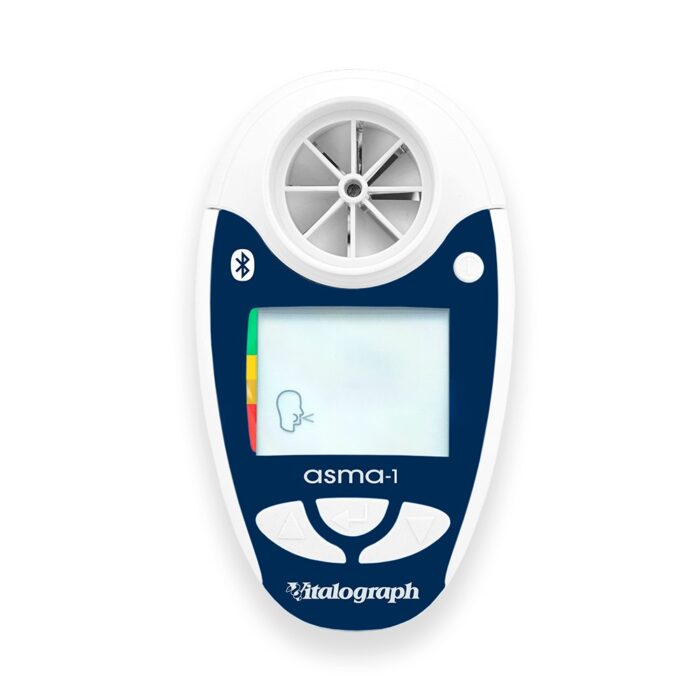

asma-1 BT Asthma Monitor
Handheld device with Bluetooth connectivity, for remote Asthma patient monitoring

The Vitalograph asma-1™ is a user friendly electronic respiratory monitor, ideal for monitoring PEF and FEV1 at home, work, in clinical trials, in primary or secondary care.  It offers greater accuracy than mechanical peak flow meters and eliminates the need for paper record cards.  Bluetooth connectivity allows test information and device ID to be stored or shared through Vitalograph Reports or Spirotrac software.

One of our 4000 Series of respiratory monitors and screeners, the asma-1 BT comes with:

• Pouch
• Instructions for use
• 2 x AAA Batteries
• Plastic mouthpiece for single patient use
• Vitalograph Reports Software

Features

• Measures FEV1 and PEF.
• Displays % of personal best FEV1.
• Electronic record – no need for record cards.
• Set unique ‘personal best’ zones for test subjects.
• Automatically stores best values in a test session.
• Quality of blow indicator.
• 600 test memory.
• Large, easy to read display.
• Suitable for use in clinic with Bacterial Viral Filters (BVF™).
• API software developers’ kit is required for integration.

asma-1 BT reports include:

• Information presented in tables and graphs.
• Customizable report headers.
• Ability to add comments to the report.
• Subject ID and name fields.
• Age, height, gender, and weight fields optional.

Model 4000
Dimensions: 109mm (length) x 63mm (width) x 42mm (height)
Flow Detection Principal:  Stator rotor
Back Pressure: Less than 0.15kPa/L/second @ 14L/s
Measurement Range: PEF 25 – 840 L/min BTPS FEV1: 0 – 9.99 L BTPS
Maximum Test Duration: 1 second
Quality Check Time to Peak Flow: >120ms or a cough detected in the first second
Power Supply: 2 x 1.5V AAA batteries
Battery Life: 3 months of use, 3 tests per day
Performance Standards: ATS/ERS 2019, ISO 23747:2015, ISO 26782:2009
QA/GMP Standards: EN ISO 13485, FDA 21 CFR 820, MDSAP.
Communications: Bluetooth
PC Requirements: Windows® 7, Windows® 8 or Windows® 10
Auto Power Down Time: 2 minutes
