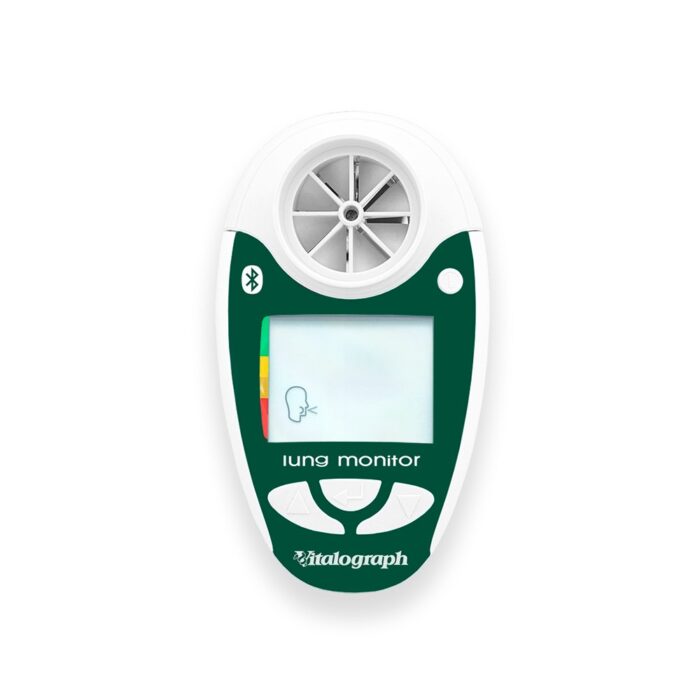

Vitalograph Lung Monitor BT Smart Respiratory Monitor (consumer model)

Additional information

Lung monitor BT Smart
Handheld device with Bluetooth connectivity, for remote lung function monitoring

Handheld device for remote Lung Function monitoring of chronic respiratory conditions such as COPD, cystic fibrosis, & post-transplant patients.  Ideal for monitoring FEV1, FEV6 and FEV1/FEV6 ratio at home, at work, within clinical trials, and in primary and secondary care. Ease of integration with immediate results.

Captures & transmits data to healthcare professionals from devices operating Apple iOS™,  Android™, Philips 2Net™ & Windows® Applications via Bluetooth®.

Features:

• Parameters: FEV1, FEV6, FEV1 / FEV6 ratio, FEV**, FEV1 / FEV ratio, FEF25-75, FEV0.75, PEF
• API software developers’ kit* available.
• Dual mode Bluetooth.
• Results direct to compatible Apps.
• Sends data after each blow.
• Large, easy to read display.
• Automatically stores best values in a test session.
• Quality of blow indicator.
• Displays % of personal best FEV1.
• Set unique ‘personal best’ zones for test subjects
• 600 test memory.
• Test with or without the use of an App.
• Suitable for use with Bacterial Viral Filters providing 99.999% cross-contamination efficiency.
• API software developers’ kit* is required for integration.

One of our 4000 Series of respiratory monitors and screeners, the lung monitor BT Smart comes with:

• Pouch
• Instructions for use
• 2 x AA Batteries
• Plastic mouthpiece for single patient use

Model 4000
Dimensions: 109mm (length) x 63mm (width) x 42mm (height)
Flow Detection Principal: Stator rotor
Accuracy: Better than ± 2.5% (FEV1, FEV), ± 10% (PEF, FEF25-75)
Measurement Range PEF: 25 – 840 L/min BTPS FEF25-75: 25 – 840 L/min BTPS FEV1, FEV: 0 – 9.99 L BTPS
Maximum Test Duration: 10 seconds
Power Supply: 2 x 1.5V AAA batteries
Expected Battery Life: 3 months of use at 3 tests per day
Performance Standards & Guidelines: ATS/ERS 2019, ISO 23747:2015, ISO 26782:2009
QA/GMP standards: EN ISO 13485, FDA 21 CFR 820, MDSAP.
Communications: Dual mode Bluetooth LE4.0 and 2.1
Auto Power Down Time: 2 minutes
