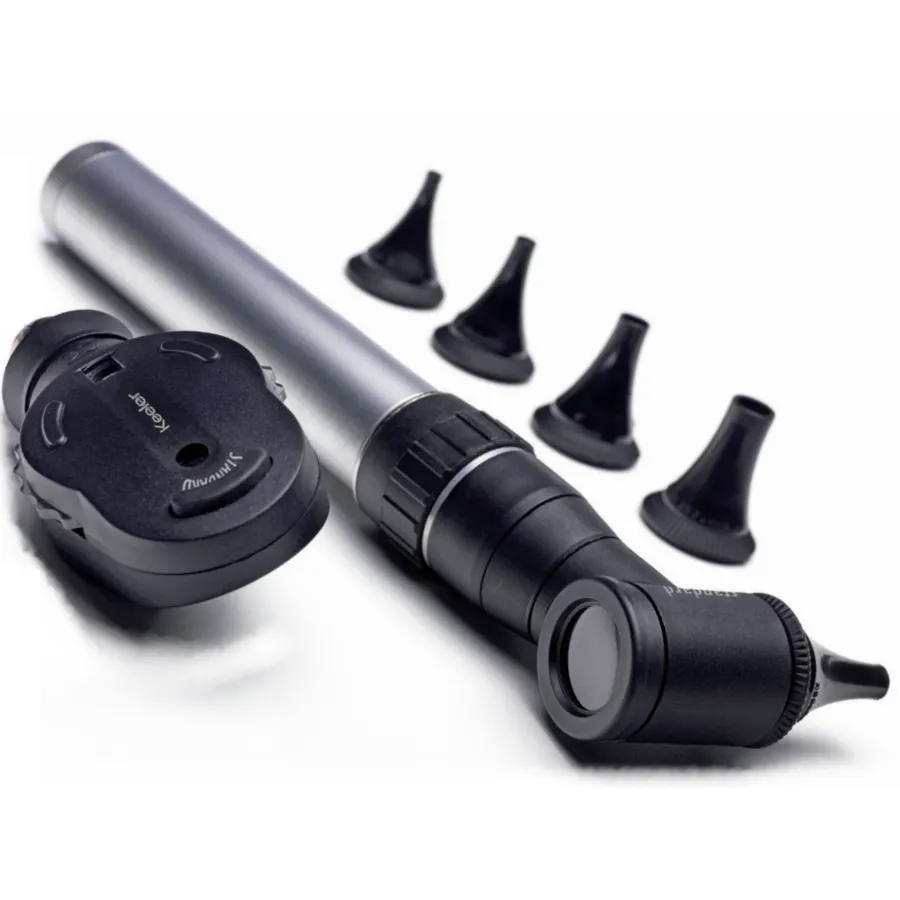

Standard Otoscope

• Closed head design particularly suited to pneumatic testing
• 2.5x magnifying lens removable to allow the introduction of small instruments
• Disposable specula supplied
• 191 x 30 x 40mm (HxWxD)
• Weight 167g

Standard Ophthalmoscope

• The positive maywheel lens control allows you to click through lens powers from +40D to -25D allowing detailed examination of the ocular structures and ease of use for spectacle wearers
• Two diagnostic beams – a wide angle beam for general examination and a macular beam for more detailed examination of the central retina A red free filter for enhanced vessel examination can be used with both diagnostic beams, particularly useful for diabetic assessment and monitoring
• The integral soft brow rest allows for easy positioning and pro
• 212 x 43 x 28mm (HxWxD)
• Weight 260g

Practitioner Otoscope

• Unobstructed open style head for easy introduction of small instruments for wax or foreign body removal
• Large slide aside 2.5x lens for clear view of aural structures and procedures under magnification
• Facility to undertake pneumatic testing for tympanic mobility
• Disposable specula supplied
• 191 x 30 x 50mm (HxWxD)
• Weight 172g

Practitioner Ophthalmoscope

• The positive maywheel lens control allows you to select a range of lens powers from +40D to -25D for detailed examination of the ocular structures and ease of use for spectacle wearers
• Includes 6 beams for a full diagnostic capability and a blue filter, particularly useful for assessing corneal scratches in children
• A red free filter for enhanced vessel examination can be used with both diagnostic beams, ideal for diabetic assessment and monitoring
• Soft integral brow rest for spectacle wearers
• 212 x 43 x 28mm (HxWxD)
• Weight 260g

Jazz Otoscope

• Fibre Optic Otoscope
• Brilliant LED illumination gives the best possible
  view and longer battery life for a greener product
• 3 x magnifying lens
• Supplied with three interchangeable colour rings
• 118 x 30 x 52mm (HxWxD)
• Weight 90g

Jazz Ophthalmoscope

• Brilliant LED illumination
• +/- 20D range of powers
• Renowned high performance Keeler optics with aspherical lens
• 178 x 28 x 28mm (HxWxD)
• Weight 90g

Fibre Optic Otoscope

• Genuine Halogen illumination transmitted via optic fibres for homogeneous illumination leading to clear and accurate diagnosis for aural images
• Large head design for unobstructed view
• Closed head system ideally suited to pneumatic testing for tympanic mobility
• Large slide aside 2.5x magnifying lens for clear view and aural structures and wax and foreign body removal procedures under magnification
• Disposable specula supplied
• 191 x 36 x 60mm (HxWxD)
• Weight 174g

Pocket Otoscope

• Ideal for domiciliary or ward use or as a ‘second’ instrument
• Closed head design particularly suited to pneumatic testing
• 2.5x magnifying lens removable to allow the introduction of small instruments
• Disposable specula supplied
• Security from the strong metal pocket clip
• 191 x 25 x 40mm (HxWxD)
• Weight 143g

Pocket Ophthalmoscope

• Full diagnostic capability in a pocket sized instrument
• Ideal for domiciliary or ward use or as a ‘second’ instrument
• Security assured from the strong metal pocket clip
• A total of 6 diagnostic beams
• Pocket instruments are powered by standard AA batteries
• 191 x 22 x 22mm (HxWxD)
• Weight 150g

Diagnostic Wall Unit Sets

• Keeler’s anti-theft designed ophthalmoscopes and otoscopes have a lockable head and handle fitting, so you’ll always find them where you left them
• Compact wall mounted design ideal for ward, surgery, consulting room and casualty use
• Strong coiled tangle-free cable permits instrument use up to three metres from transformer
• The robust construction is ideally suited to the busiest working conditions
• Automatic illumination when instruments are removed from cradle with LED confirmation
• The cord outfits consist of ophthalmoscope, otoscope and double cord handle power supply
• Dispos-A-Spec Speculum Dispenser can be added to your set (see page 10 for details)

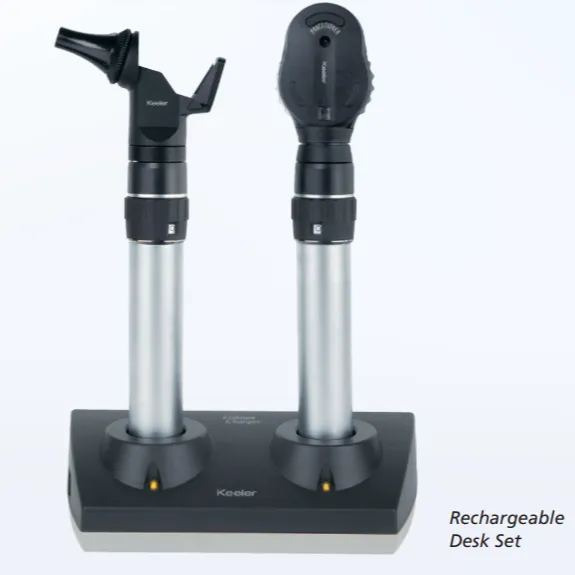

Rechargeable Desk Sets

• Available with the Keeler range of ophthalmoscopes and otoscopes
• Can be desk or wall mounted to suit your needs
• The new, compact, modern design is ideal for wall mounting and therefore ideal for ward, surgery, consulting room and casualty use
• Robust construction suited to the busiest working conditions
• Lithium-ion technology provides over 2 hours of continuous use, and 2 hour rapid charge
• LEDs indicate when battery life is low, charging or fully charged
